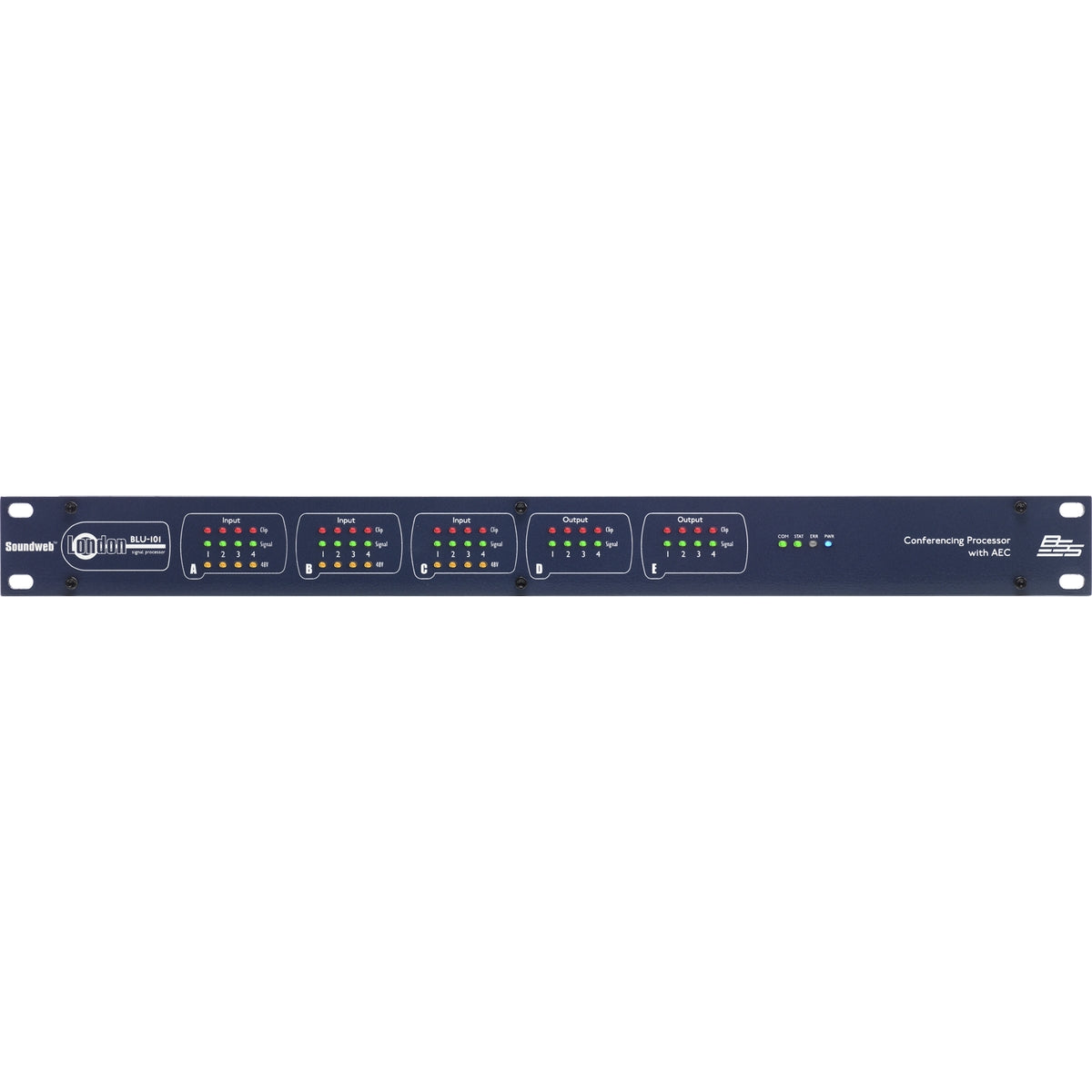

BSS BLU-101 Conferencing Processor with AEC

The Soundweb London BLU-101 offers a fixed configuration of 12 analog inputs and 8 analog outputs, configurable signal processing, AEC processing, and a high bandwidth, fault tolerant digital audio bus.
The BLU-101 has open architecture which is fully configurable through HiQnet™ London Architect. A rich palette of processing and logic objects and a “drag and drop” method of configuration provide a simple and familiar design environment.
The BLU-101 contains dedicated AEC processing for up to 12 independent AEC algorithms. The AEC algorithm can be applied to signals coming from the local analog inputs or from the digital audio bus. 12 innavidual AEC references (one per algorithm) allow the user to provide a solution for multiple conferencing spaces using a single device.
The BLU-101 is compatible with the entire Soundweb London family and its 48 channel digital audio bus represents channels 1-48 of the larger 256 channel dig ital audio bus when integrated with the BLU-800, BLU-320, BLU-160, BLU-120, BLU-BIB and BLU-BOB devices.
The BLU-101 and the other members of the Soundweb London family provide the building blocks of the perfectly tailored system solution.

Key Features

• 12 Analog Inputs (with 48v Phantom Power per Channel)
• 8 Analog Outputs
• Configurable Signal Processing
• 12 Channels of AEC Processing with Auto Gain Control and Noise Cancellation
• Rich Palette of Processing and Logic Objects
• 48 Channel, Low Latency, Fault Tolerant Digital Audio Bus
  Clear Front Panel LED Indication
• Bi-Directional Locate Functionality
• 12 Control Inputs and 6 Logic Outputs for GPIO Integration
• Soundweb London Interface Kit for Third Party Control System Integration (Documentation)
• HiQnet Device
• Configuration, Control and Monitoring from HiQnet London Architect

Technical Specifications

Front Panel Led Indicators:
Per Input: Signal Present, CLIP, 48V (Input only)
Other: COM, STAT, ERR, PWR
Analog Inputs: 12 electronically balanced on Phoenix Combicon removable screw connectors
Mic/Line Inputs: Nominal gain 0dB, electronically switchable up to +48dB,in +6dB steps
Input Impedance: 3.0kΩ
Maximum Input Level: +20dBu with 0dB input gain,+8dBu with 12dB gain
CMRR: >75dB at 1KHz
Input Noise (E.I.N.): <-125dBu typical with 150Ω source
Phantom Power: 48V nominal, selectable per input
A/D Latency: 37/Fs <0.77ms@48k>
Analog Outputs: 8 electronically balanced on Phoenix/Combicon removable screw connectors
Maximum Output Level: +19dBu
Frequency Response: 20Hz-20KHz (+0.5dB/-1dB)
THD: <0.01% 20Hz to 20KHz, +10dBu output
Dynamic Range: 108dB typical, 22Hz-22KHz unweighted
Crosstalk: <-75dB
Output Impedance: 40Ω balanced and 20Ω unbalanced
D/A Latency: 29/Fs <0.60ms@48k>
BLU link:
Connectors: 2 x RJ45 Ethernet connectors
Maximum Cable Length: 100m/300ft on Category 5e cable between devices
Max. Number of Nodes: 60
Latency: 11/Fs <0.23ms@48k>
Pass Through Latency: 4/Fs <0.08ms@48k>
Power and Dimensions:
Mains Voltage: 100-240V AC, 50/60Hz
Power Consumption: <55VA
BTU Rating: <188 BTU/hr
Operating Temp. Range: 15 (59) to 35 (95) degrees C (degrees F)
Dims: (H(U) x W x D): 1.75” (45mm)(1U) x 19” (483mm) x 12.5” (318mm)
Weight: 9.1 lbs / 4.1 kg
