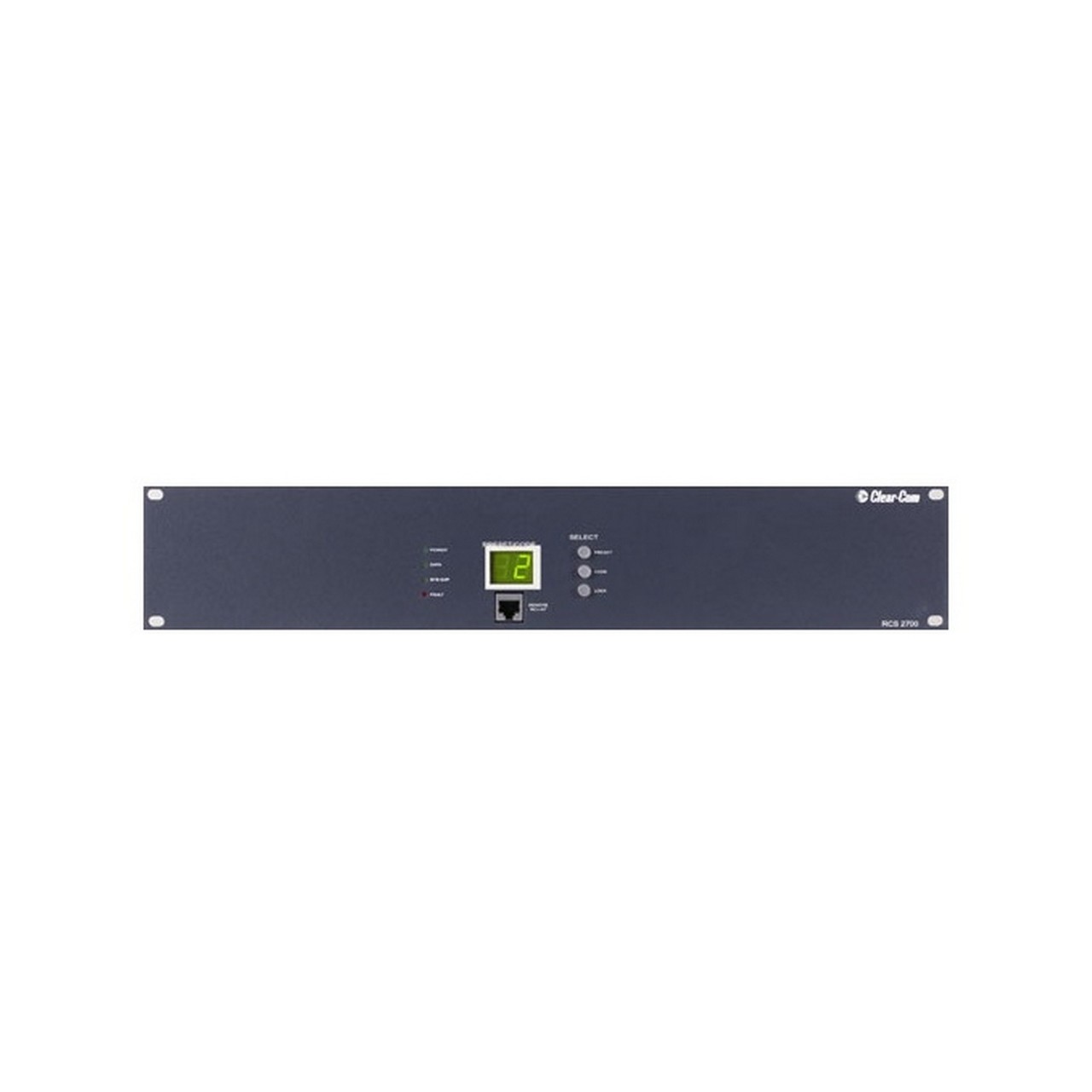

Clear-Com RCS-2700 8 x 24 Channel Programmable Main Station

8 X 24-Channel Programmable Station-Assignment Panel – Stores 14 presets – Expandable up to 15 X 72 (6 units) Rack mount (2RU) – Assigns 24 destination paths to one of eight partyline channels

RCS-2700 is ideal for medium to large installations where channel assignments to remote stations frequently change. 8 master channel “sources” can be assigned to any 24 remote station “destinations”, and additional RCS-2700 units can be connected for up to 15 sources and 72 destinations. It can store 14 presets.

Key Features

• 8×24 programmable assignment panel
• Remote control of frame from up to 300 feet (90 m) away
• Expandable up to 15 “sources” and 72 “destinations”
• Stores fourteen presets in non-volatile memory
• Easy-to-use Graphical User Interface (virtual station)
• Multiple systems can be controlled from the same PC
• Six-character labels in GUI
• Latching relays keep current draw extremely low

Technical Specifications

Audio
Partyline intercom: 20 – 20KHz (passive switching)
RS-2700 Data
Baud rate
19.2 Kbps
Start Bits
1 start bit
Stop Bits
1 stop bit
Parity
no parity
Crosstalk
<-70 dB
Frequency Response
Port-Port
20Hz – 20KHz
Switching Matrix Latching Relays
Switching Current
<=2A
Power Requirements
Input Voltage
27-33 VDC
Input Current (max)
<= 80mA
Rear Panel Connectors
(1) RJ-45
(1) DB-9 for RS-2700
Euro-block pins for
Sources
Source expansions
Source power
Destinations
Destination power
RCS power
Source 8 continuation
Data links
Matrix/contact closure
Rear Panel Controls
Reset button
Unit address switch
Termination switches (8)
Front Panel Connector
RJ-45
Front Panel Controls
Preset
Code
Lock/Unlock
Front Panel Indicators
Double-digit, 8-segment LED readout LEDs for Power, Data, System Expansion, Fault, Lock
Environmental
32 to 122 F (0 to 50 C)
Dimensions
19 in. W x 3.5 in.H x 10.75 in. D
(48.3 cm x 8.9 cm x 27.31 cm)
Weight
5.5 lb. (2.5 kg)
Sizes
Single frame, 1×2, 2×1, 2×2, 1×3, 2×3
Maximum RCS-2700 Units
6 RCS-2700 units for a 15-source by
72-destination system
Storage
14 presets with labels (maximum size systems)
Non-volatile memory system maintains all settings and switching matrix connections when powered off
