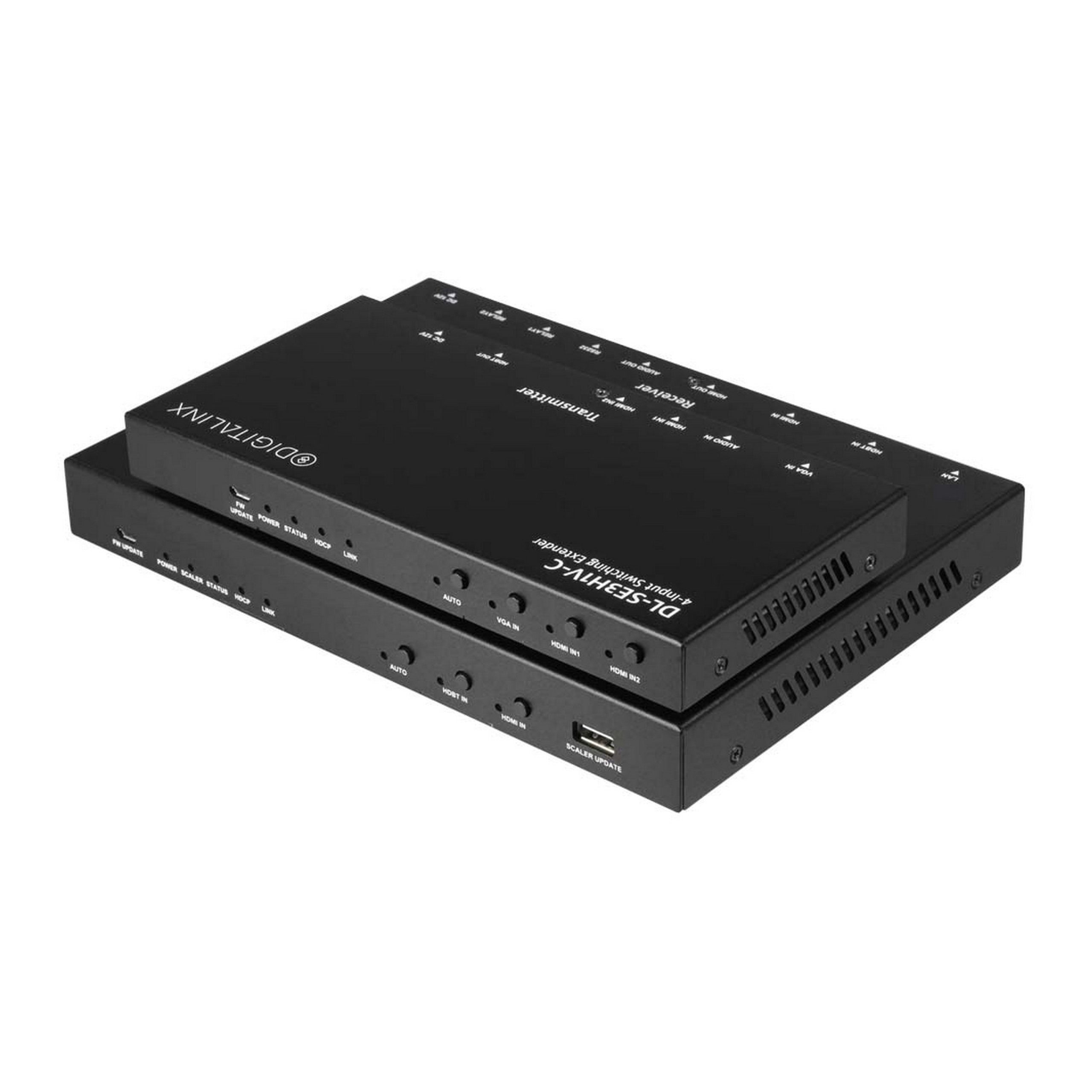

DigitaLinx DL-SE3H1V-C 4 x 1 Multi-Format Conference Room Collaboration Switcher/Extension Set

The DigitaLinx DL-SE3H1V-C is a 4K compatible, 4 input multi format A/V auto switcher, extender and video scaler system that supports long distance transport of HDMI between transmitter and receiver up to 70 meters / 230’ using Cat6 cabling. System supports PoE , receiver powers transmitter. The DL-SE3H1V-C features a total of 3 video inputs on the transmitter; (2) HDMI, (1) VGA with 3.5 Audio and (1) HDMI input located on the receiver for integration of a local HDMI input such as a wireless BYOD / screen share product. The receiver also features a stereo analog audio output to connect to an audio amplifier for audio reinforcement, an RS232 serial control port for display control / connectivity and two relay ports for projection screen or window shade control / connectivity.

Key Features

• Easy to use local collaboration switching/extension/display control system
• 2 HDMI & 1 VGA with audio inputs on TX plus 1 HDMI input on RX
• HDMI input on RX offers connectivity for remote devices such as wireless BYOD gateways
• HDBaseT w/PoE extension
• Integrated scaling up to 4k
• Integrated display controller with 1 RS232, 2 relays, and CEC control can issue power on/off commands to display and open/close relays when source device is connected / disconnected
• Audio de-embedding
• Auto switching, manual control, or 3rd party control via TCP/IP
• Simple automation control triggers commands when signal is presented or removed
• Extend signal up to 70M
• Receiver powers transmitter
