Eartec EVADE EVX6S-CM Full Duplex Dual Channel Wireless Intercom System with 6 Single Speaker Headsets Free Shipping 100% Guaranteed

Eartec EVADE EVX6S-CM Full Duplex Dual Channel Wireless Intercom System with 6 Single Speaker Headsets

Eartec has been supplying specialty headset solutions for over six decades. We have long recognized the need for a Light Industrial wireless that is both comfortable yet built rugged. With this in mind the new EVADE Single is sure to become Eartec’s most popular team communication headset

EVADE Single operate in full duplex mode allowing crew to talk simultaneously and hands free just like on a regular telephone. Designed specifically for professional crews the EVADE Single features a deluxe padded speaker that can be worn on left or right side leaving one ear open. With all electronics including a compact radio and rechargeable battery built inside the ear cups the EVADE Single are not only affordable but reliable too

EVADE wireless owe their name to a digital operating system called Frequency Hopping. The compact digital radio built into the earcup continuously monitors the environment and automatically switches to channels that are clear whenever necessary to easily avoid interference. This smart engineering is a military technique that dodges or “evades” other wireless systems and provides crystal clear communication

The Conference Module (included) provides a staff conference with a single touch of a button

The Conference Module is a compact wireless repeater that expands the capacity of any EVADE system from 9 to 16 users. This lightweight digital transceiver can either belt worn or placed centrally on location and features dual channels allowing two separate crews to talk privately. Pressing the conference button on the Module face connects the entire team, and tapping the button again re-separates the groups. Two Conference Modules can also be interlinked doubling system capacity to 32 users all connected in full duplex mode

Field programmable, smaller set-ups can and be easily expanded to meet your changing needs without factory programming or re-tuning.

Key Features

• Excellent performance – Range up to 1/2 mile
• Radio installed inside earcup, no wires or beltpacks
• Li-Poly Batteries – Provide continuous 8 hr operation and are field replaceable
• Auto Mute Boom – Mute when in UP position
• Volume Control – Simple up / down push button adjustment
• Sealed for use outdoors in inclement conditions
• Light Industrial Design – Wear comfortably for an 8 hour work shift
• Field Programmable – Start small and add to your system as needed

Technical Specifications

Frequency Range
2407MHz-2475MHz
Data Rate
1MBPS
Bandwidth
150KHz
Channel Spacing
1MHz
Modulation Type
GFSK
Gain of Antenna
0db
Duplexing
Time Division Duplex (TDD)
Speech Encoding
ADPCM/16kbit/s
RF Accessing
Time Division Multiple Access (TDMA)
Power Supply
Rechargeable Li-polymer Battery @ 3.7v/1000mAH
RF Output Power
80mw
Operating Temperature
0 – +50º C
Operating Relative Humidity Range
30% – 90%
Operation Current
110mA
Operation Time
8h
Range
1/2 mile (open field)

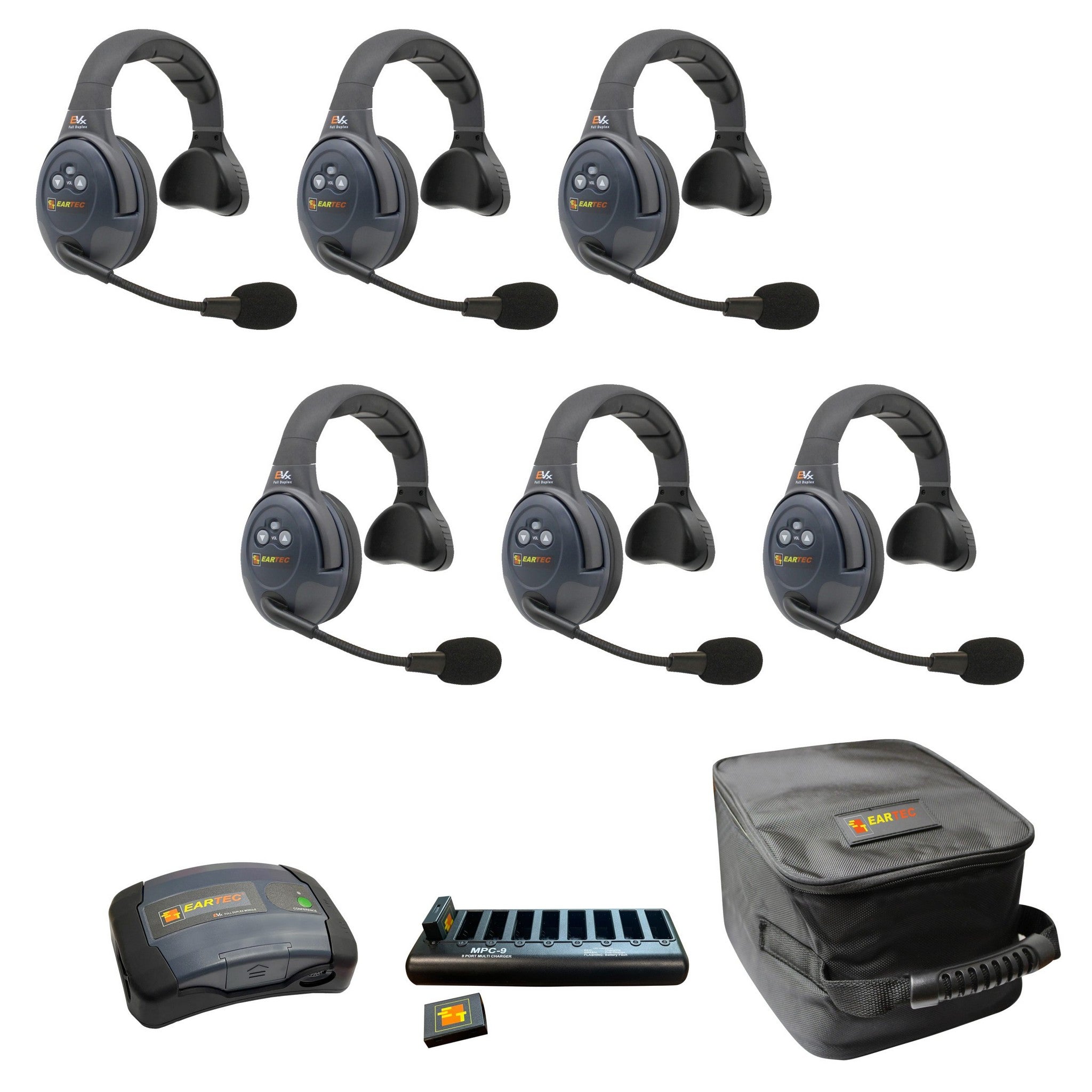

Item Includes
1- EVADE C-MOD 1- EVADE Single-Ear Main Headset 5- EVADE Single-Ear Remote Headset 1- 9-Port Charger w/ Adapter 1- Extra Large Soft Padded Case 6 X Lithium-Polymer Batteries
