Eartec EVADE EVX844-CM Full Duplex Dual Channel Wireless Intercom System with 4 Single 4 Dual Speaker Headsets Outlet Affordable

Eartec EVADE EVX844-CM Full Duplex Dual Channel Wireless Intercom System with 4 Single 4 Dual Speaker Headsets

The EVADE Custom Series includes both Single and Double full duplex wireless headsets. There may be situations where innaviduals on a production team require one ear free to closely monitor what is happening around them while others focus solely on the staff conversation and need both ears covered. The EVADE Custom Series accommodates this and any other scenario where a combination of dual and single ear headsets are required

All EVADE full duplex team communication intercoms allow users to talk simultaneously and hands free within a 1/2 mile range. They include a specialty “MAIN” headset that relays the digital signals transmitted by up to eight “Remote” units. To operate EVADE intercoms simply turn the headsets “ON” and talk, no tuning or base station required

EVADE headsets utilize Frequency Hopping technology automatically switching channels to dodge or “evade” interference. They also include Eartec’s Auto Mute Mic boom that cuts off transmit gain when set to the UP position and swivels 270 degrees to be worn on either left or right

The Conference Module (included) provides a staff conference with a single touch of a button

The Conference Module is a compact wireless repeater that expands the capacity of any EVADE system from 9 to 16 users. This lightweight digital transceiver can either belt worn or placed centrally on location and features dual channels allowing two separate crews to talk privately. Pressing the conference button on the Module face connects the entire team, and tapping the button again re-separates the groups. Two Conference Modules can also be interlinked doubling system capacity to 32 users all connected in full duplex mode

Field programmable, smaller set-ups can and be easily expanded to meet your changing needs without factory programming or re-tuning.

Key Features

• Excellent performance – Range up to 1/2 mile
• Radio installed inside earcup, no wires or beltpacks
• Li-Poly Batteries – Provide continuous 8 hr operation and are field replaceable
• Auto Mute Boom – Mute when in UP position
• Volume Control – Simple up / down push button adjustment
• Sealed for use outdoors in inclement conditions
• Light Industrial Design – Wear comfortably for an 8 hour work shift
• Field Programmable – Start small and add to your system as needed

Technical Specifications

Frequency Range
2407MHz-2475MHz
Data Rate
1MBPS
Bandwidth
150KHz
Channel Spacing
1MHz
Modulation Type
GFSK
Gain of Antenna
0db
Duplexing
Time Division Duplex (TDD)
Speech Encoding
ADPCM/16kbit/s
RF Accessing
Time Division Multiple Access (TDMA)
Power Supply
Rechargeable Li-polymer Battery @ 3.7v/1000mAH
RF Output Power
80mw
Operating Temperature
0 – +50º C
Operating Relative Humidity Range
30% – 90%
Operation Current
110mA
Operation Time
8h
Range
1/2 mile (open field)

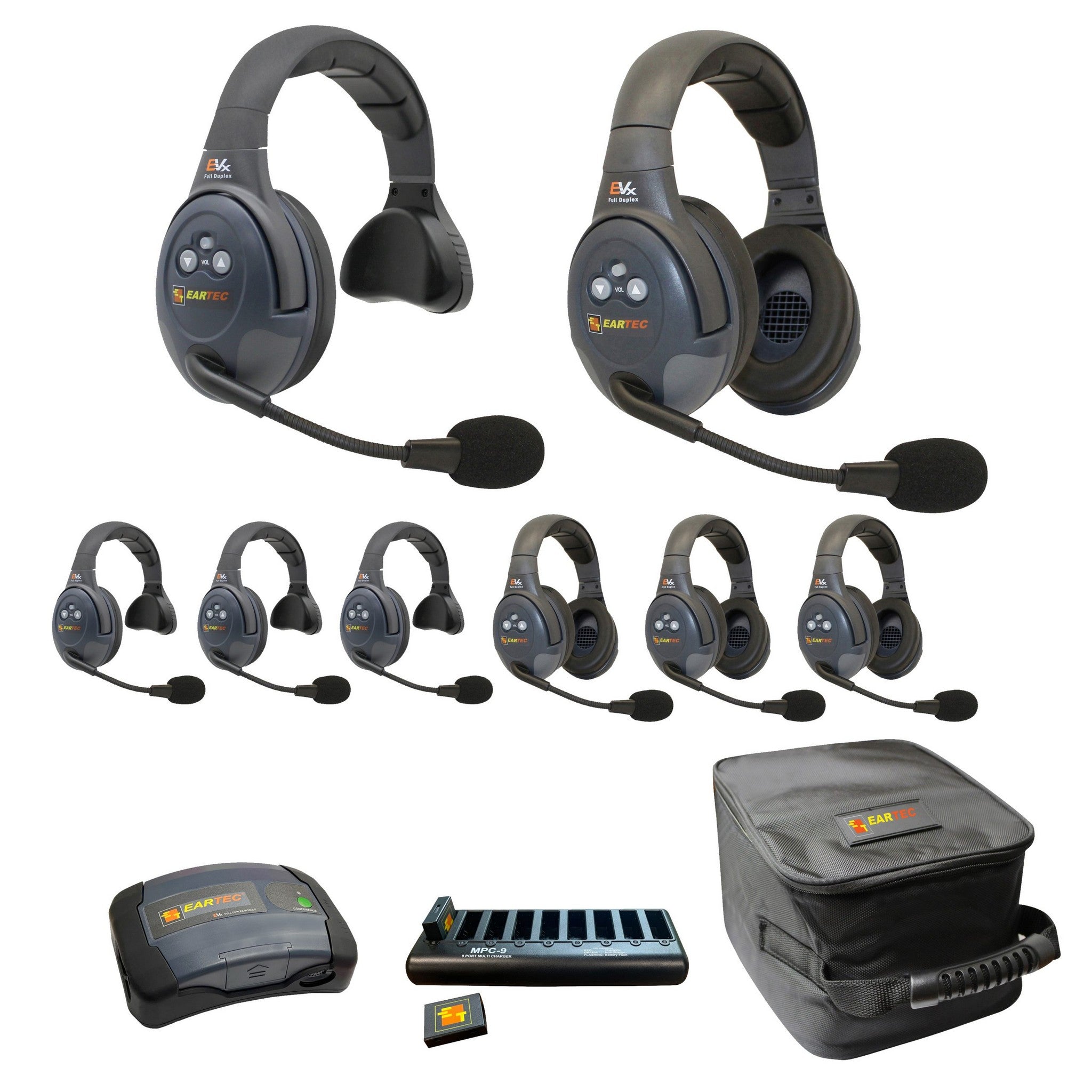

Item Includes
1- EVADE C-MOD 1- EVADE Single-Ear Main Headset 3- EVADE Single-Ear Remote Headset 4- EVADE Double-Ear Remote Headsets 1- 9-Port Charger w/ Adapter 1- Extra large Soft Padded Case 8 X Lithium-Polymer Batteries
