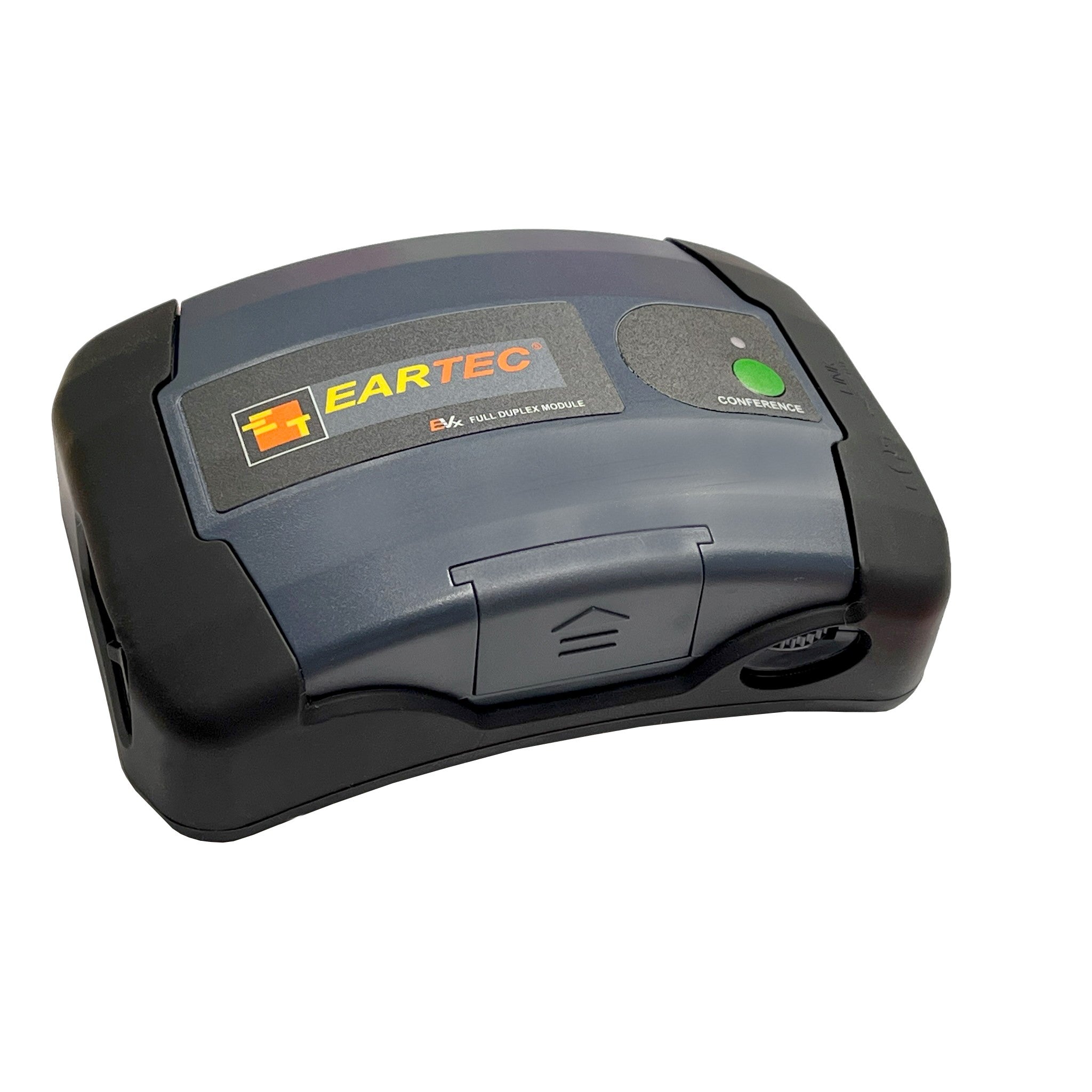

Eartec EVADE EVXCM C-MOD Two Channel Base Station

The EVADE CMOD Full Duplex Wireless Intercom System provides wireless communication to larger production staffs that need to stay in constant voice contact while working with their hands. With Eartec’s software controlled circuit, 16 roaming wireless units can communicate just as if they were plugged in by a floor cable. Two Conference Modules can be interlinked doubling system capacity to 32 users all connected in full duplex mode.This versatile Mini Base weighs only 9 oz. and can either be placed strategically “on location” or belt worn. When clipped comfortably to the user’s waist this digital repeater moves seamlessly with your group allowing crews to talk simultaneously within a 1/2 mile range.

Key Features

• Excellent performance – Range up to 1/2 mile
• Radio installed inside earcup, no wires or beltpacks
• Li-Poly Batteries – Provide continuous 8 hr operation and are field replaceable
• Auto Mute Boom – Mute when in UP position
• Volume Control – Simple up / down push button adjustment
• Sealed for use outdoors in inclement conditions
• Light Industrial Design – Wear comfortably for an 8 hour work shift
• Field Programmable – Start small and add to your system as needed

Technical Specifications

Frequency Range
2407MHz-2475MHz
Data Rate
1MBPS
Bandwidth
150KHz
Channel Spacing
1MHz
Modulation Type
GFSK
Gain of Antenna
0db
Duplexing
Time Division Duplex (TDD)
Speech Encoding
ADPCM/16kbit/s
RF Accessing
Time Division Multiple Access (TDMA)
Power Supply
Rechargeable Li-polymer Battery @ 3.7v/1000mAH
RF Output Power
80mw
Operating Temperature
0 – +50º C
Operating Relative Humidity Range
30% – 90%
Operation Current
110mA
Operation Time
8h
Range
1/2 mile (open field)
Item Includes
1- EVADE C-MOD Base Station 1 X Lithium-Polymer Battery 1- 9-Port Charger w/ Adapter
