Lumens DC136 4K Portable USB Document Camera View

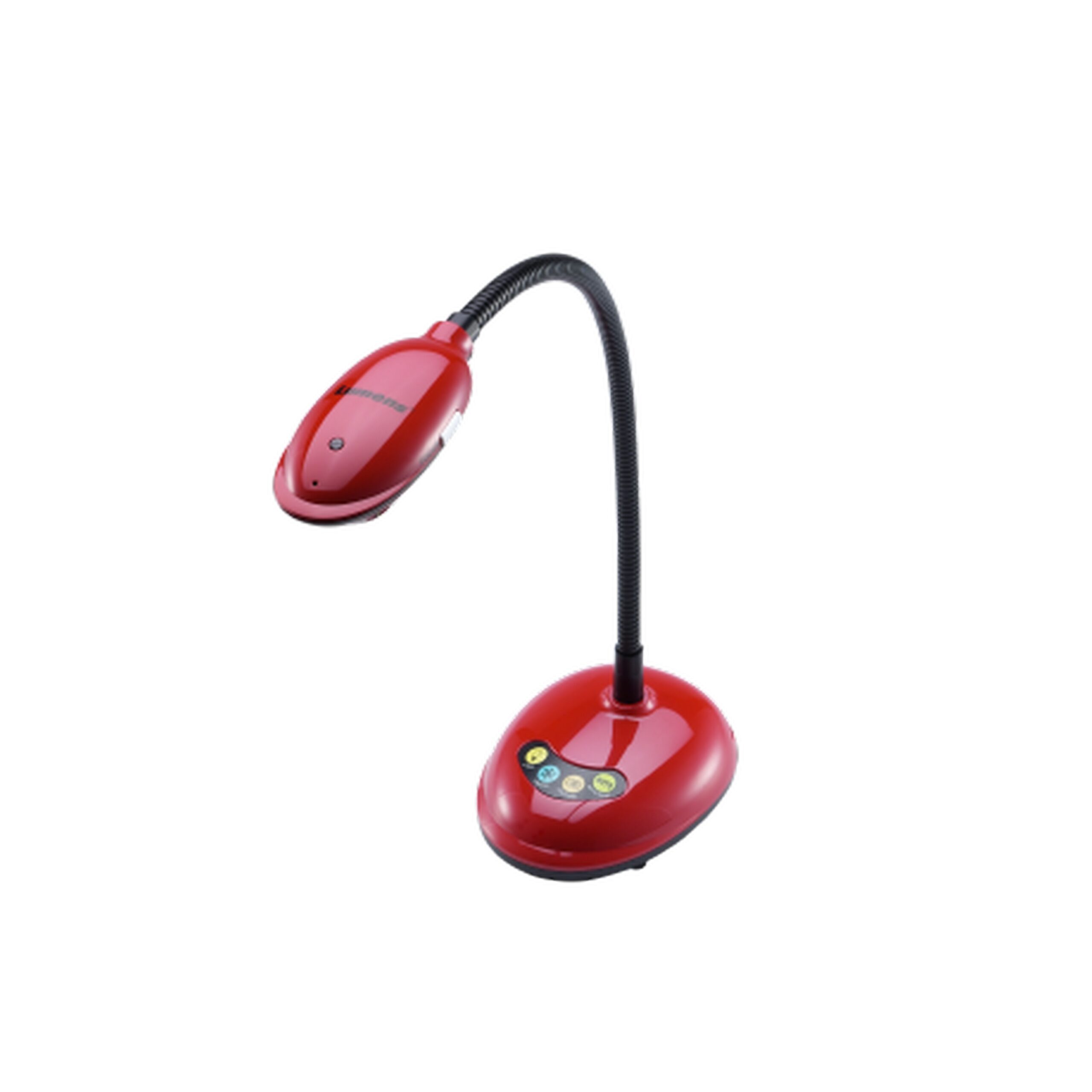

Lumens DC136 4K Portable USB Document Camera

With a 13-megapixel Sony sensor, DC136 is a professional-quality visualizer which produces bright images and vivid colors. It supports capture and live reproduction at resolutions up-to 4K. Able to visualize the finest detail and even fast action, DC136 is great for use in education and training.

User friendly Interface
Buttons on the base quickly control core functions including lamp on/off, image freeze and capture. Auto-tune and focus buttons automatically optimize the camera to produce sharp, color balanced and bright images that look great on 4K monitors, projectors, and large format displays.

Lumens Ladibug Software
DC136 supports Lumens Ladibug 4K application. The software gives users access to advanced features which include annotating images, masking and cropping images, and sharing saved files. Ladibug is easy to use and is compatible with Windows and Mac computers.

Audio and Video Recording
The built-in microphone can capture video with audio: it’s easy to record motion, complete with on-screen annotation and voice-over. This means that the device is convenient for collaborative training and distance learning. USB Plug & Play Set up couldn’t be easier. The USB cable is connected to a computer (PC or Mac) without the need for an external power adapter or VGA cable. Using the Ladibug software, the computer can save videos locally or share files across networks.

Ultimate Webcam
Featuring an UltraHD camera and professional microphone, Lumens DC136 works with Zoom, Teams, Skype and Webex platforms. Users can position the camera head over a document, angle it towards the presenter or focus on students to encourage group participation. As a UVC compliant device, there are no drivers to install or configuration required. It’s fully plug and play.

Imaging Flexibility
The 4K camera is mounted on a flexible, multi-angle gooseneck design. The height is adjustable for close-up or wide-angle imaging. The lens can capture large documents and objects, in excess of A3 in size (16.8” x 12.6”), giving the DC136 the versatility for use in any location and for a wide range of applications. For customers preferring an HD model, check out the DC125.

Technical Specifications

Sensor
1/3” 13MP CMOS
Total Pixels
3840 x 2160
Output Resolution
4K(2160p), 1600×1200,
1080p,720p, XGA, 960×540,
640×480, 640×360
Frame Rate
30fps for 2160p
60fps for 1080p / 720p
Sensor Zoom
2x for 1080p (1920×1080)
3x for 720p (1280×720)
3x for XGA (1024×768)
Mechanical Zoom
7x
Close-up
2.4″ (60 mm)
Shooting Area Max.
16.8″ x 12.6″ (428 mm x 321 mm)
Lamp
LED Lamp
Arm
Joint-free Gooseneck
Power
USB Bus Power
Output
USB 3.0 (Compatible with USB2.0)
Control
USB
Built-in Microphone
Yes
Auto Tune
Yes, One Button for Optimization Image
Focus Mode
Auto / Manual
Image Rotation
0 / 180 / Flip / Mirror
Video / Audio Recording
Ladibug Software
Freeze
Yes
Pan
Yes
Mask / Spotlight
Ladibug Software
USB Image Transmission
USB 3.0
Image Capture
Single or Continuous Capturing
(via Software)
Driver
UVC / UAC
Free Lumens Software
Support Windows 10, 8, 7, Mac OS X, Chrome OS
Anti-Theft
Kensington Anti-Theft Lock Device
VESA Mount
Yes, 75 mm x 75 mm
Included Accessories
USB 3.0 Cable
Sharpness
MTF 1000 Line
Power Consumption
2.25W (Maximum)
Weight
2.65 lbs (1.2 kg)
Dimensions: (LxWxH)
Folded : 9.3″ x 4.2″ x 11″ (236 x 106 x 280 mm)
Open : 13.8″ x 4.2″ x 15″ (350 x 106 x 380 mm)
