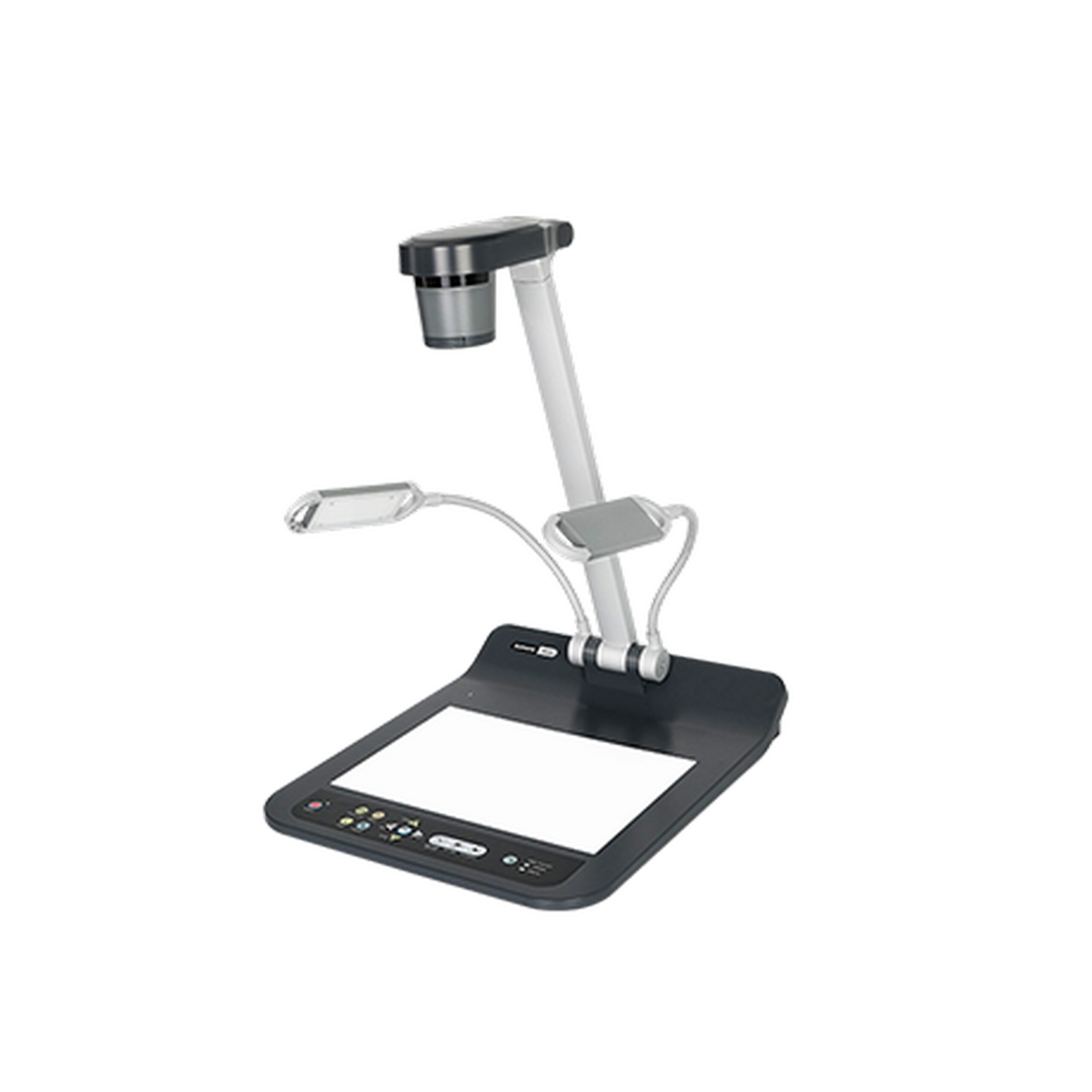

Lumens PS753 4K Desktop Document Camera

Superior Image Quality
With a 4K camera and powerful zoom, the PS753 delivers remarkably detailed images to screens and projectors.

The high-performance Sony sensor faithfully reproduces textures and colors in real-time, with excellent control over image noise.

Wide Shooting Area
Lumens PS753 is extremely versatile, capable of reproducing documents and objects larger than A3 in size (over 20.5″ x 12.1″ / 50cm x 30cm). This gives presenters and demonstrators the flexibility that less powerful visualizers cannot match. Where the operator needs a close-up shot, the 300x zoom can capture the finest detail. For maximum versatility, the ePTZ functionality changes the camera angle and position to focus on a specific part of the object. This gives you the precise image you need every time.

Multi-Angle Lighting
The Lumens PS753 has dual lights on adjustable gooseneck mounts: any object is perfectly lit from above without glare or reflections. It also has a backlit LED light under the display area, making the visualizer ready to illuminate photo negatives and X-rays from below.

Easy to Use
Despite its advanced features, Lumens PS753 is very easy to use. The Auto-Tune immediately calibrates the camera to deliver a perfectly focused image with accurate colors. The annotation tool allows the user to draw over the image on the screen without installing any additional software. It’s fast, convenient, and simple to use. Use the included Ladibug software for advanced image control and connect to remote guests using your favorite conferencing platforms, such as Zoom, Meet, Skype, Teams, or WebEx.

Fast Installation
The PS753 is very easy to install. Power is provided over your Ethernet network (PoE) without additional power supplies. The system can output live pictures over a connection that suits the way you work: it links directly to a display or projector over HDMI or VGA or streams images over your network.

5 Year Warranty
Lumens offers a 5-year warranty with all its products as standard.

*The warranty policy may be different depending on the sales region, please contact your local salesperson.

Key Features

• 4K Resolution with 300x zoom
• Supports HDMI, VGA, Ethernet, and USB output
• Shooting area (20.5″ x 12.1″) larger than A3
• Records to USB drives
• HDMI pass-through up to 4K resolution
• 5-year warranty

Technical Specifications

Image Sensor
1/2.8″ 8M CMOS
Total Pixels
8.6 MP
Total Zoom
300x (Optical: 10x, Sensor: 3x)
Digital Zoom
30x (max.)
Output Resolution
XGA / 720p / 1080p / 2160p
Frame Rate
30fps for All Resolution
60fps for 1080p and 720p
Shooting Area Max.
522 x 308 mm (20.5″ x 12.1″)
IP Stream Format
RTSP (H.264 / AAC)
USB Video format
H.264 / MJPEG / YUV
Lamp
1. Dual LED Side Lamps
2. Built-in LED Backlight
Arm
Mechanical Arm
Power
External, 12V DC Adapter(100~240 VAC)
PoE+
Input
HDMI x1 (Supports 4K)
Output
HDMI x1, VGA x1(up to 1080p)
USB 2.0, IP Streaming
Ethernet
RJ-45 ( PoE+, IEEE802.3at)
Control
RS-232 / USB / IP
Built-in Microphone
Yes
Audio In
Built-in Mic, Line In (3.5mm)
Audio(Phone) Out
Line Out (3.5mm)
Memory Slot
USB 2.0 Flash Drive, Expandable to 4TB
Built-in Memory
100 JPEG
Auto Tune
Yes
Focus Mode
Auto / Manual
Image Mode
Photo / Text / Film / Slide / Microscope
Image Rotation
0 / 90 / 180 / 270 / Flip / Mirror
Standalone AV Recording
Yes
Video / Audio Recording
Yes
HDMI Pass-through
Active Pass-through, up to 2160p 60 Hz
Onboard Annotation
Yes, Supports USB Mouse
Freeze
Yes
Pan
Yes
PIP
Yes
Mask / Spotlight
Yes
Lock Down Mode
Yes
Auto Erase
Yes
USB Image Transmission
USB 2.0 (480 Mbps) High Speed Transmission
Image Capture
Single or Continuous Capturing
Driver
UVC / UAC
Free Lumens Software
Ladibug Software
Anti-Theft
Kensington Anti-Theft Lock Device
VESA Mount
Yes, 75mm x 75mm
Built-in Back Light Size
210 x 297 mm (8.3″ x 11.7″)
Sharpness
MTF 1100 lines (at 2160p)
Power Consumption
DC In : 16W / PoE : 18W
Weight
12.3 lbs (5.6 kg)
Dimensions (LxWxH)
Folded : 22.3″x15.2″x6″ (566x385x152 mm)
Open : 18.3″x15.2″x23.1″ (466x385x588 mm)
