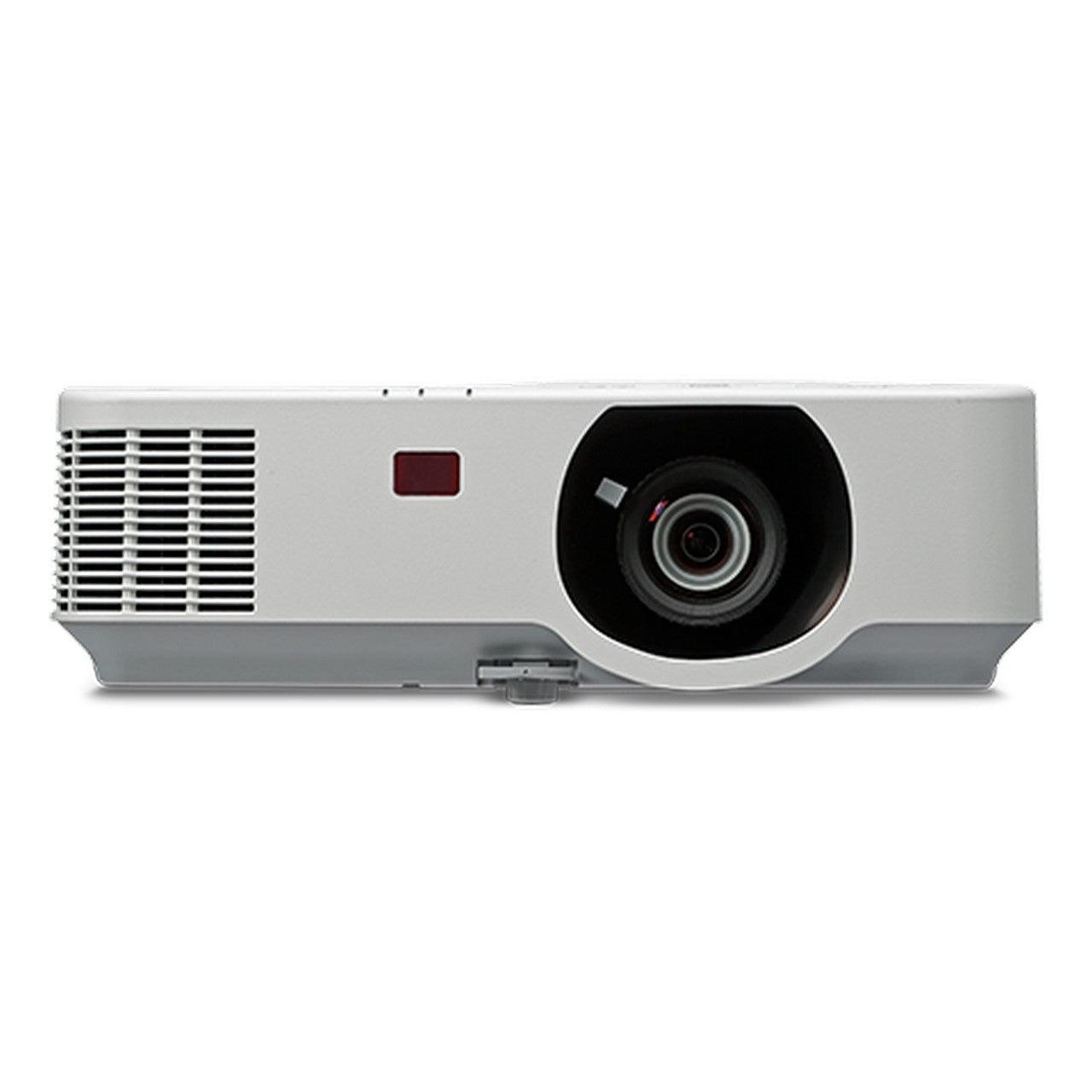

NEC NP-P474W 4700 Lumens Professional Installation Projector

The P Series is ideal for higher education classrooms, corporate boardrooms and rental where bright, sharp images are required. The NEC P474W includes advanced installation features such as horizontal & vertical lens shift and HDBaseT connectivity that provide greater installation flexibility. Adding horizontal & vertical keystone correction along with cornerstone and pincushion adjustment ensures the image will be square on the screen even if installation challanges exist. The long life lamp reduces maintenance and lowers total cost of ownership.

Key Features

• Horizontal & Vertical lens shift enables flexible projector placement
• Powerful 20W speakers provide volume needed for large rooms
• Built-in HDBaseT enables simplified installations with a single cable for video and audio over long distances
• Dual HDMI inputs (with HDCP) ensures quick switching between presentations
• LAN connection for control and asset management over the network
• Optional wireless display with MultiPresenter Stick
• Variable audio-out allows the remote control to adjust speaker volume
• 18,000:1 Contrast Ratio creating extremely detailed images
• 8000-hour lamp (eco) drastically reduces maintenance, thereby decreasing the total cost of ownership
• Eco-friendly features, minimal maintenance and cost savings mean these projectors are still great for challenging installation applications in higher education and corporate
• NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations

Technical Specifications

Display Technology
0.64″ LCD
Light Output(Lumens)
5200 (Center)
4700 (Eco Off)
4050 (Normal Eco)
3050 (Eco)
Resolution
Native: WXGA 1280 x 800
Maximum: WUXGA 1920 x 1200
Contrast Ratio (up to)
18,000:1
Lamp Type
330W AC
Lamp Life (up to)
4000 hours (Eco Off) / 6000 hours (Normal Eco) / 8000 hours (Eco)
Screen Size (diagonal)
30 to 300 in. / 0.76 to 7.6m
Throw Ratio
1.2 to 2.1
Projection Distance
2.6 to 44.3 ft. / 0.8 to 13.5m
Projector Angle
0 to 9.7 deg tele / 0 to 16.1 deg wide
Lens
Zoom: 1 to 1.7
Focus: Manual
F number, fnumber: F=1.7 to 2.2, f=17.4 to 29.0mm
Shift: Manual 0-55% vertical, +/-15% horizontal
Keystone Correction
Manual +/- 20 deg horizontal, +/- 30 deg vertical
Synchronization Range
Horizontal (Analog/Digital): 15-100 kHz (RGB: 24 kHz or over)
Vertical (Analog/Digital): 50-120 Hz
Supported Video Standards
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
PC Signal Compatibility
VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
Macintosh Compatibility
Yes
Input/Output Terminals
RGB1(analog): VGA 15-pin D-sub
RGB2(digital): HDMI w/HDCP
RGB3(digital): HDMI w/HDCP
RGB4(digital): HDBaseT
Video 1: RCA
Audio 1: RCA
Audio 2: Mini stereo
Monitor out: VGA 15-pin D-sub
Audio out: 1/8 in. stereo (Variable audio out)
Audio
20W speaker
External Control
RS-232, IR, DDC/CI, USB, LAN
Sync Compatibility
Separate Sync / Composite Sync / Sync on G
Networking
RJ-45 Monitoring
Power Requirements
100-240V AC, 50/60 Hz
Input Current
4.7-1.8A
Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving)
418W / 280W / 2.0W / 0.16W
Installation Orientation
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Fan Noise
37 dB normal / 34 dB eco
Regulations
USA UL 60950-1 / FCC Part15 Class B, Canada CSA 60950-1 / ICES-003 Class B, NOM
Operating Temperature
41-104 deg F / 5-40 deg C
Humidity
20-80% non-condensing
Storage
14-122 deg F / -10-50 deg C
