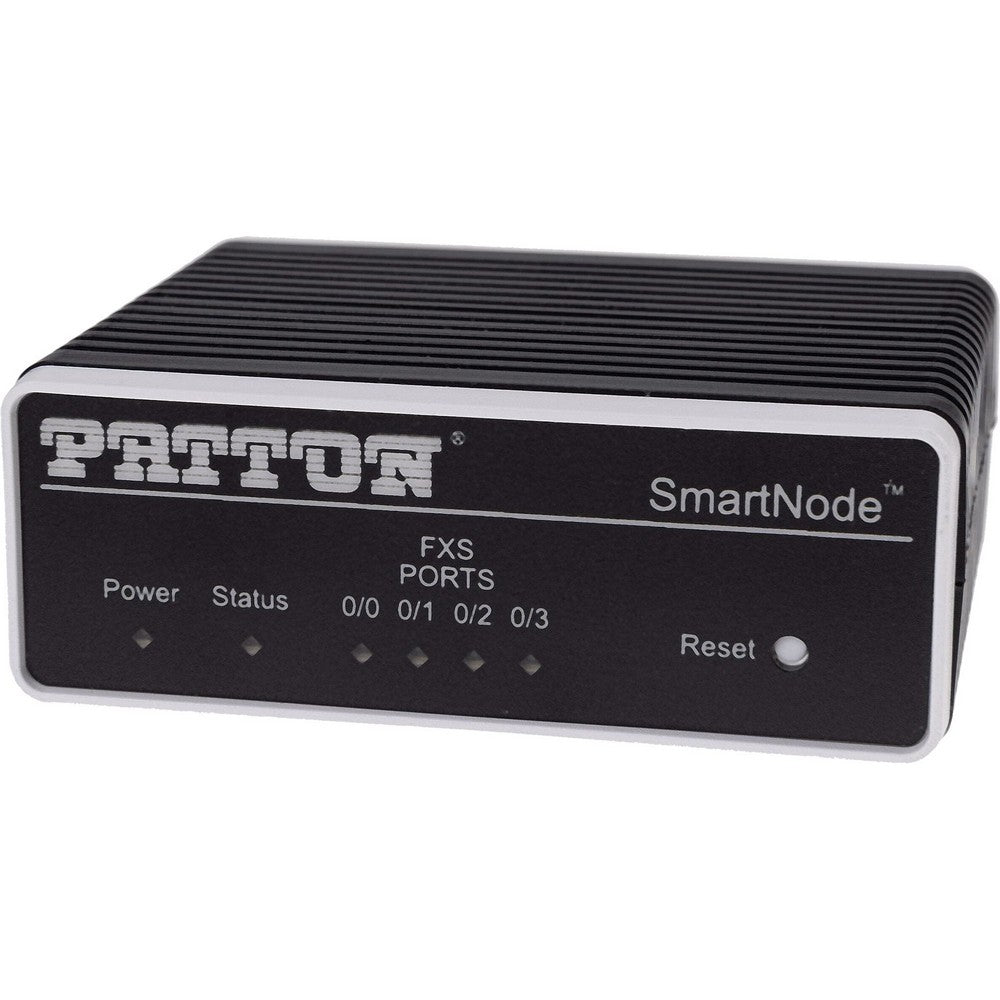

Patton SN200/4JS4V/EUI SmartNode FXS-SIP VoIP Gateway, 4 FXS Ports

The Patton SN200/4JS4V/EUI SmartNode 200 Series of Analog Telephone Adapters and Gateways support up to four telephone connections, integrating legacy Phones and Fax machines in to a UCC Environment. High quality voice and reliable fax over any IP network. All-IP does not end when analog terminals have to be integrated. Security and quality guaranteed. Connect with confidence using the SmartNode SN200 Series, legacy telephony equipment to nowadays common SIP trunk and hosted services. The SN200 Series support a variety of telephony interfaces, from 1 to 4 simultaneous calls. Depending on the model, there are FXS and FXO ports available for survivability or number portability during the All-IP migration phase. Designed for professional network deployments, the SN200 provides Telco Operators and Enterprise users a cost-effective solution integrating legacy phones, fax and metering machines in to an All-IP Network.

Key Features

• Up to 4 Analog Interfaces (FXS/FXO)
• Advanced Calling Features
• Full VoIP protocol support
• Lowest OPEX
• Survivability & Local Breakout
• Easy Management & Provisioning
• Small Form Factor & PoE Powered
• Outstanding Interoperability

Technical Specifications

Capacity
Up to 4 simultaneous low- bandwidth voice or HD calls with SRTP or T.38 fax calls
Voice Signaling
SIPv2 / SIPv2 over TLS (B2BUA capable, multi instance, simultaneous support of multiple
Registrars and direct IP dialing)
SIPv2 over IPv6
SIP call transfer, redirect
DTMF in-band & out-of-band
All tones programmable (dial, ringing, busy)
Voice Processing
G.722
G.711m/A-law
G.723.1 (6.4 kbps)
G.729, 729a, 729ab (8 kbps)
G.726 (16, 24, 32, 40 Kbps)
AMR-NB (4.75, 5.15, 5.9, 6.7, 7.4, 7.95, 10.2, 12.2kbps)
iLBC at 13.33 kbps (SIP-SIP only)
G.168-2004 echo cancellation (128 ms)
Up to 8 simultaneous low-bandwidth voice or T.38 fax calls
Up to 8 HD calls with SRTP
Up to 200 SIP to SIP calls
Up to 4 SIP transcoded calls
Silence suppression and comfort noise
Adaptive and configurable dejitter buffer
Configurable RTP packet length
Call Switching and Services
Regular expression based call routing and number manipulation
Number blocking
Short-dialing
Digit collection, distribution and hunt groups
Transparent line extension
Fallback Routing: Soft fall back to alternative route(s)
FXS Connectivity
2-wire Loopstart on RJ-11/12
EuroPOTS (ETSI EG201188)
Programmable AC impedance, feeding, ring and onhook voltage
Caller-ID FSK and ITU V.23/Bell 202 generation
Long Reach FXSG€”10 km @ 3REN load – 24AWG wire (0.205mm2)
Secondary Surge Protection (optional)
FXO Connectivity
2-wire Loopstart RJ11/12
Programmable impedance
Ring detection, tone detection
Caller ID detection (FXS, DTMF)
Disconnect supervision
Connectivity
One or two 10/100/1000Base-T Ethernet ports
USB 2.0 host port (/2ETH port version only)
Auto-MDIX
DHCP Client
PPPoE Client (multi-session)
IP Multi-Netting, VLAN, Secondary IP
IPv4 and IPv6 – Dual Stack
ICMP
Dynamic and static NAT and NAPT
ACL, Stateful Firewall
DNS, DynDNS
DHCP Server
SNTP Client
Quality of Service
Patton Cloud network monitoring
Voice priority, DownStreamQoS
Traffic Management, shaping policing
IEEE 802.1p, IEEE 802.1Q, 4096 VLANs (Tag insertion/deletion), TOS, DiffServ Labeling
Management
Patton Cloud Orchestrated
Customizable WebWizard, Web-based GUI, CLI Telnet and HTTP access
TR-069, TFTP, HTTP, HTTPS configuration up- and download
TR-069, TFTP, HTTP, HTTPS firmware upgrade, Dual Image
SNMPv3 agent – MIB II and private MIB
Separate config domain (LAN side config and WAN side config)
Built-in diagnostic tools
Secure Auto-Provisioning with built in root CA
Power Consumption
< 10W
Packaging
Desktop/Wall-mount plastic chassis
Dimensions
8.2W x 1.3H x 6.5D Inches
Weight
0.99 Lbs
Operating Temperature
32 to 104°F
Operating Humidity
up to 90%, non-condensing)
EMC compliance
EN55022 and EN55024
Safety compliance
EN 60950
