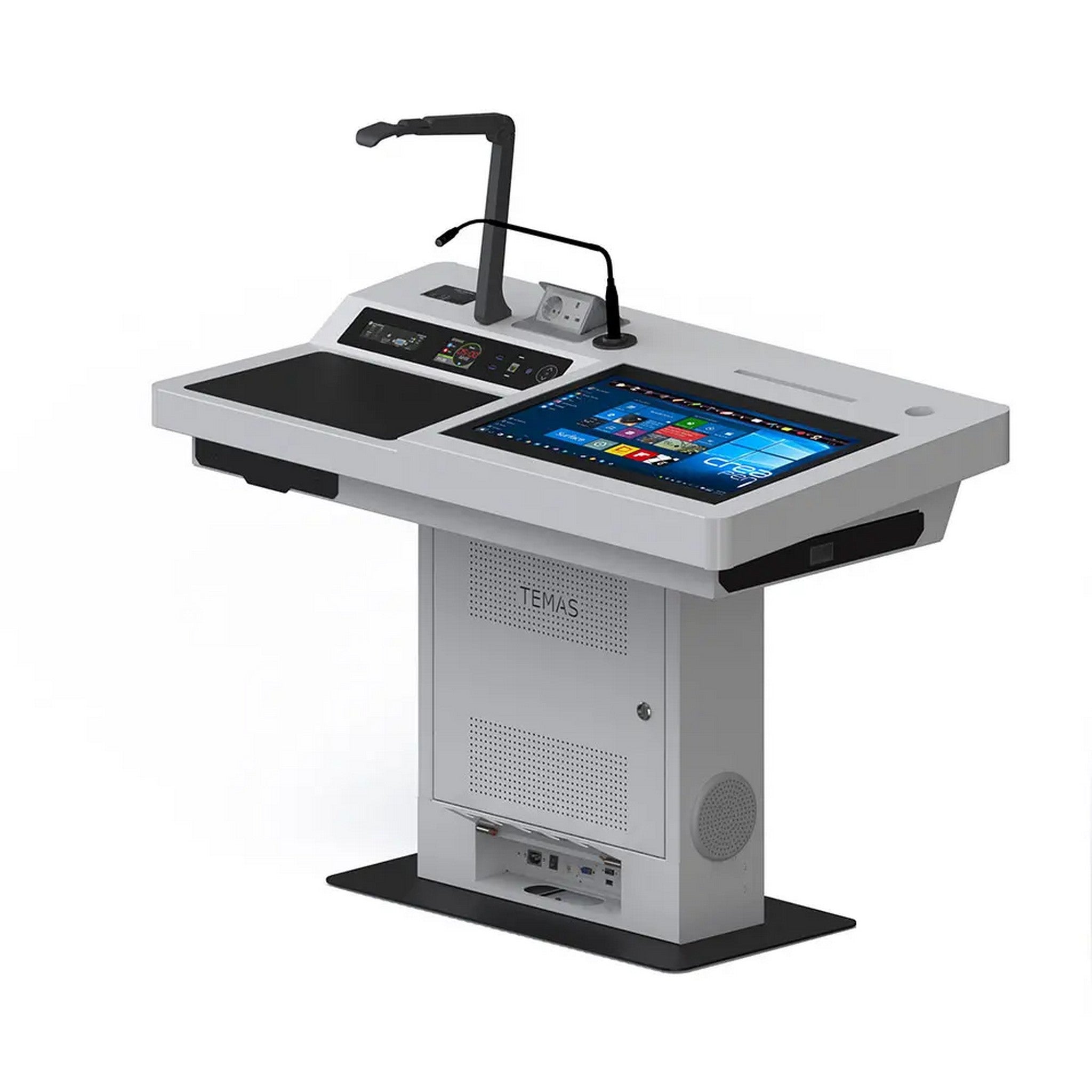

TEMAS EP22A 22″ Speaker Screen Pro Digital Podium

The TEMAS EP22A 22″ Speaker Screen Pro Digital Podium is designed to elevate your presentations to a professional level. With a 22-inch high-definition display, this podium is perfect for classrooms, conference rooms, and other venues where clear visual communication is essential. The Full HD resolution of 1920 x 1080 (2.1 megapixel) ensures that your content is displayed with stunning clarity and vibrant colors. Featuring a sleek design and a range of advanced technologies, this podium is tailored for speakers who demand the best.

Equipped with a host of features, the TEMAS EP22A includes a projective capacitive touch screen with 10 touch points, allowing for smooth and intuitive interactions. The display boasts an aspect ratio of 16:9, making it ideal for both presentations and video playback. Additionally, the advanced contrast ratio of 12,000,000:1 ensures that your visuals stand out, even in bright environments. With built-in blue light reduction technology, the podium helps to minimize eye strain during extended use, making it an ideal choice for long presentations.

Connectivity is a breeze with the TEMAS EP22A, which offers multiple options including HDMI, DVI, and VGA inputs, alongside a USB hub for easy integration with various devices. The included Shure 18 CVG18S-B microphone captures high-quality audio, making your voice clear and present for your audience. The podium also features an electrical lifting column for height adjustment, ensuring comfort for speakers of all sizes. With its sturdy construction and modern design, the TEMAS EP22A is the perfect companion for any professional presenter.

Key Features

• 22-inch high-definition display with Full HD resolution
• 10 touch points for intuitive interaction
• Multiple connectivity options including HDMI, DVI, and VGA
• Built-in Shure microphone for superior audio quality
• Adjustable height for ergonomic comfort
• Advanced contrast ratio and blue light reduction technology
• Lightweight and portable design for easy transport

Technical Specifications

Speaker Screen
Diagonal: 21.5″; 55cm
Aspect Ratio: 16:09
Panel: Amva LED
Native Resolution: Full HD 1080p, 1920 x 1080 (2.1 megapixel)
Brightness: 250 cd/m² typical, 215 cd/m² with touch panel
Advanced Contrast: 12,000,000:1 ACR
Static Contrast: 3,000:1 with touch panel
Response Time: 8 ms
Viewing Zone: horizontal/vertical: 178°/178°; right/left: 89°/89°; up/down: 89°/89°
Display Colour: 16.7 million
Blue Light Reducer: yes
Touch Technology: projective capacitive
Touch Points: 10
Glass Hardness: 7H minimum
Light Transmittance: 85%
Display Area: H X W 268.1 x 476.6 mm; 10.6″ x 18.8″
Pixel Pitch: H X V 0.248 x 0.248 mm
Horizontal Sync: 30 – 80 KHz
Vertical Sync: 56 – 75 Hz
Synchronization: Separate Sync

Interfaces / Connectors / Controllers
Analog Input Connector: VGA
Digital Input Connector: DVI, HDMI
USB HUB: UP 1 x USB 3.0 / DOWN 4 x USB 3.0
Controls: USB (touch), USB 3.0

Microphone
Model: Shure 18 CVG18S-B Microphone
Cartridge Type: Electret Condenser
Frequency Response: 70–16000 Hz
Polar Pattern: Cardioid
Output Impedance: 180 Ω
Sensitivity: –33 dBV/Pa (22 mV)
Maximum SPL: 120 dB SPL
Signal to Noise Ratio: 67 dB
Dynamic Range: 93 dB
Self Noise: 27 dB SPL
Common Mode Rejection: 45 dB
Preamplifier Output Clipping Level: −7 dBV
Polarity: 3
Power Requirements: 11–52 V DC, 2.0 mA

Switch & Scaler
3×2 4K HDMI and USB-C Scaled Out Matrix
HDMI 2.0 and DVI 1.0 compliant
HDCP 1.x and 2.2 compliant
1 USB Type-C and 2 HDMI inputs
2 HDMI outputs with independent matrix switching and auto-switch support
Supports up to 4K UHD (18Gbps, 4K@60Hz 4:4:4, 8-bit) video input and output
Supports Deep Color input and output up to 12-bit
Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
Supports pass-through of many audio formats including 8 channel LPCM, Bitstream, and HD Bitstream
HDMI Output A supports 4K to 1080p downscaling
USB-C port functionality is switchable between a A/V focused mode (4K@60Hz) with USB 2.0 data and a mixed media mode with simultaneous A/V (4K@30Hz), USB 3.0, and Ethernet support
USB-C port provides up to 20V/3A (60W) power to the connected device
Supports pass-through of 8 channel LPCM, bitstream & HD bitstream audio formats
Analog audio output source audio can be from output A or B (LPCM 2.0 sources only)
Integrated USB 3.0 hub with one dedicated Type-B host port and two Type-A device ports
Supports basic signal event automation (via RS-232, Ethernet, or CEC)
Controllable via front panel 5” Timer screen

PC
Operating System: Windows 10 Pro
CPU: Intel® Pentium® Gold G6405 Processor 4.1GHz (4M Cache)
Chipset: Intel B560
Graphics: Integrated – Intel HD Graphics
Memory: DRAM MODULE(DDR4)/3200/4G
Storage: 128GB M.2 NVMe™ PCIe® 3.0 SSD
Wireless Data Network: Wi-Fi 6, Bluetooth 5.0, 2*2
LAN: 10/100/1000 Mbps, Intel LAN
Side (Front) I/O Ports: 4 x USB 3.2 Gen2 Type-A (1 w/QC), 1 x USB 3.2 Gen1 Type-C, 2 x Audio Jacks (optional)
Back I/O Ports: 1x USB3.2 Gen1 Type-A, 2x USB2.0, 1x RJ45 LAN, 2x Display Port 1.2, 1x configurable ports (HDMI 2.0/VGA/COM/DP/LAN), 1x Kensington lock, 1x DC-in
Power Supply: 150W – 19Vdc, 4.74A, 90W Power Adapter
Dimensions (W x D x H): 175 x 175 x 44.2 mm
Weight: 1.3KG (HDD included)
Color: Black
Accessories: USB Keyboard & Mouse
Certificates: BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI

USB Distance Learning Visualizer
Model: AVerVision M5
Image Sensor: 1/3.2” CMOS
Total Pixels: 8 Megapixels
Output Resolution: Up to 3264×2448 (8M)
Zoom: 16X Digital Zoom (via software)
Frame Rate: Full HD 1080P at 60fps
Shooting Area: Larger than A3 (420 X 315mm)
Focus: Auto / Manual (via software)

Height Adjustment
Model: Linak DL6 Lifting Column
Max. thrust: 700 N per column
Max speed: 38 mm/s unloaded
Bending moment: Max. 150 Nm dynamic
Low and uniform noise level
PVC-free column
Single or 2, 3, 4 parallel drive
Multi-parallel is possible only when in combination with CBD6S
Duty cycle: 10% ~ 2 minutes of continuous use at full load, followed by 18 minutes of pause
Ambient temperature: +5° to +40°C

Remote Control
Model: Hand Control HB10
Hand control controlling 2 channels
Easily operated by both left and right-handed persons
Colour on top part is silver (RAL 7035) and the bottom part is a soft black rubber coating
Simultaneous drive up and down
Transmitter signal based on 433 MHz or Bluetooth® connection
Long-life batteries included. Battery lifetime at normal use of 1 minute per day is about 10 years

Mechanical Specifications

Lecturer Panel
Size: 22″
Screen Resolution: 1920×1080
Brightness: 250 cd/m²
Aspect Ratio: 16:09
Number of Touch Points: 10 Points Capacitive
Lecturer Panel PC:
CPU: Intel 4,10 GHz
RAM: 4 GB
HDD: 120 GB SSD
Operating System: Windows 11 Pro

Microphone
Length: 18”
No of Microphone: 1 pcs
Output Connector: 3-way XLR (Male)
Microphone Type: Cardioid
Frequency Response: 50 – 18 kHz
Power ON Indicator: LED

Visualizer
Image Sensor: 1/3.2” CMOS
Total Pixels: 8 Megapixels
Output Resolution: Up to 3264×2448 (8M)
Zoom: 16X Digital Zoom (via software)
Frame Rate: Full HD 1080P at 60fps
Shooting Area: Larger than A3 (420 X 315mm)
Focus: Auto / Manual (via software)

Outputs (Bottom of Podium)
HDMI: Available (Projector Out)
Ethernet: Network Connection
XLR for Microphone: 3-way XLR (Male)

Electrical Lifting Column for Height Adjustment
Movement: Vertical (Up/Down)
Control: By Buttons (Up/Down) and Remote Control
Speed: Max speed: 38 mm/s
Lifting Strength: 700N
Locking System: Automatic Locking when engine not working
Engine Type: Electrical

Mechanical Specs
Outline Dimension (mm) Set: Min: 550 x 795 x 1210
Outline Dimension (mm) Package: 780 x 1350 x 1340
Weight (kg) Set: 101 kg, Package: 155 kg
