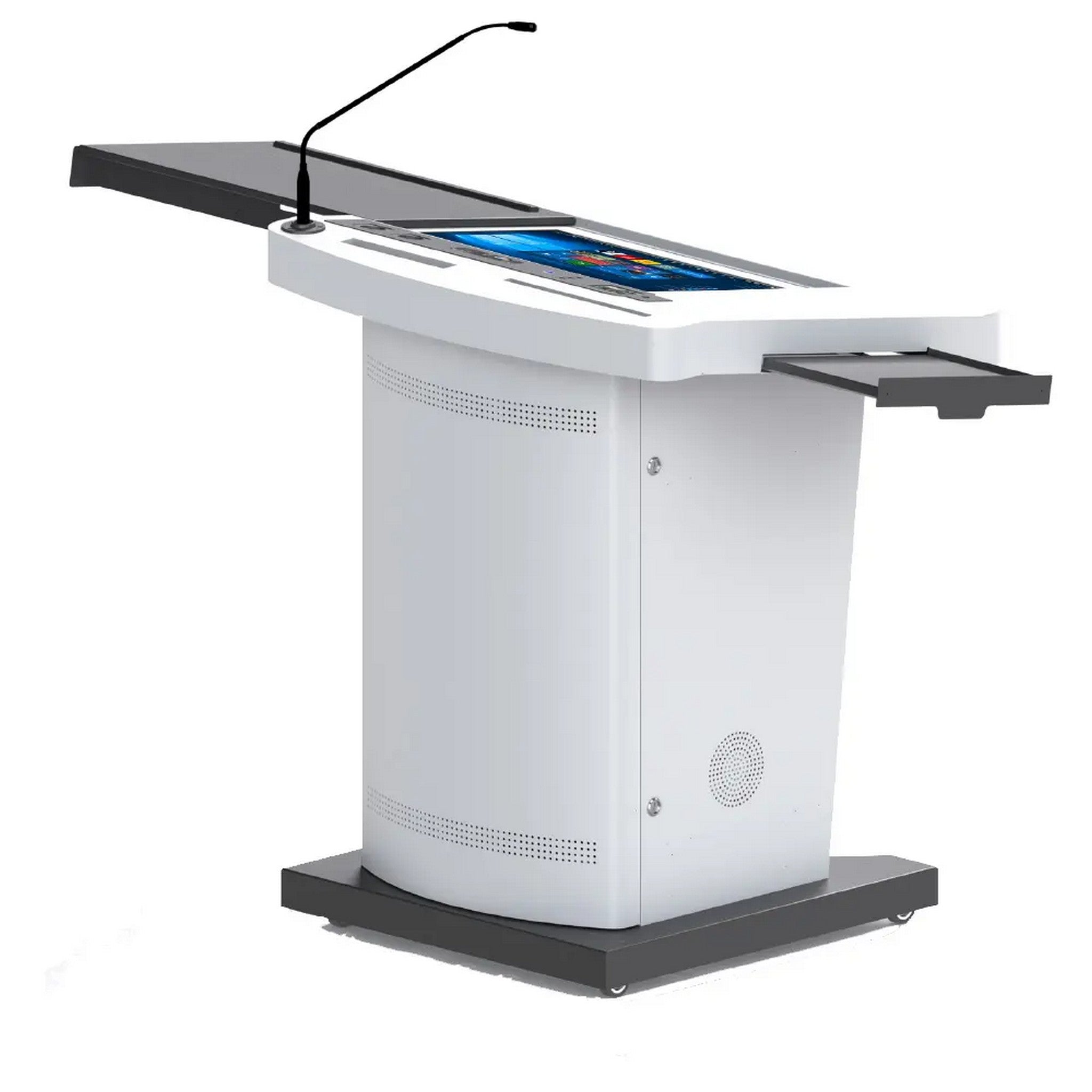

TEMAS ML22T 22-Inch Speaker Screen Digital Lectern

Elevate your presentations with the TEMAS ML22T 22-Inch Speaker Screen Digital Lectern, a state-of-the-art solution designed for today’s speakers and educators. This versatile digital lectern features a 22-inch display that allows for seamless presentation of slides, videos, and notes, providing a captivating experience for any audience. Its sleek design not only enhances the aesthetics of your venue but also ensures that all essential functions are readily accessible at your fingertips.

Crafted for durability and ease of use, the ML22T offers a stable structure that facilitates easy mobility and quick setup. The user-friendly interface and advanced connectivity options make it compatible with a wide range of devices, enabling you to deliver impactful presentations without a hitch. The built-in microphone and wireless charging features further enhance its functionality, allowing you to focus on delivering your message rather than on the equipment.

The TEMAS ML22T is perfect for various settings—whether in a large auditorium or a small classroom. Its innovative design and exceptional performance capabilities make it an invaluable asset for any presenter looking to make a memorable impact. Experience the perfect blend of style, functionality, and technology with the TEMAS ML22T Digital Lectern.

Key Features

• Integrated 22-inch display for dynamic presentations
• Durable and portable design for easy transport
• Multiple connectivity options for various devices
• User-friendly interface for quick adjustments
• Wireless charging capability with fast charge feature

Technical Specifications

Speaker Screen
Diagonal: 21.5″; 55cm
Aspect Ratio: 16:09
Panel Amva: LED
Native Resolution: Full HD 1080p, 1920 x 1080 (2.1 megapixel)
Brightness: 250 cd/m² typical; 215 cd/m² with touch panel
Advanced Contrast: 12,000,000:1 ACR
Static Contrast: 3,000:1 with touch panel
Response Time: 8 ms
Viewing Zone: horizontal/vertical: 178°/178°; right/left: 89°/89°; up/down: 89°/89°
Display Colour: 16.7 million
Blue Light Reducer: yes
Touch Technology: projective capacitive
Touch Points: 10
Glass Hardness: 7H minimum
Light Transmittance: 85%
Display Area: H x W 268.1 x 476.6 mm; 10.6″ x 18.8″
Pixel Pitch: H x V 0.248 x 0.248 mm
Horizontal Sync: 30 – 80 KHz
Vertical Sync: 56 – 75 Hz
Synchronization: Separate Sync

Interfaces / Connectors / Controllers
Analog Input Connector: VGA
Digital Input Connector: DVI, HDMI
USB HUB: UP 1 x USB 3.0 / DOWN 4 x USB 3.0
Controls: USB (touch), USB 3.0

Switch & Scaler
3×2 4K HDMI and USB-C Scaled Out Matrix
HDMI 2.0 and DVI 1.0 compliant
HDCP 1.x and 2.2 compliant
1 USB Type-C and 2 HDMI inputs
2 HDMI outputs with independent matrix switching and auto-switch support
Supports up to 4K UHD (18Gbps, 4K@60Hz 4:4:4, 8-bit) video input and output
Supports Deep Color input and output up to 12-bit
Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
Supports pass-through of many audio formats including 8 channel LPCM, Bitstream, and HD Bitstream
HDMI Output A supports 4K to 1080p downscaling
USB-C port functionality is switchable between A/V focused mode (4K@60Hz) with USB 2.0 data and a mixed media mode with simultaneous A/V (4K@30Hz), USB 3.0, and Ethernet support
USB-C port provides up to 20V/3A (60W) power to the connected device
Supports pass-through of 8 channel LPCM, bitstream & HD bitstream audio formats
Analog audio output source audio can be from output A or B (LPCM 2.0 sources only)
Integrated USB 3.0 hub with one dedicated Type-B host port and two Type-A device ports
Supports basic signal event automation (via RS-232, Ethernet, or CEC)
Controllable via front panel 5” Timer screen

PC
Operating System: Windows 10 Pro
CPU: Intel® Pentium® Gold G6405 Processor 4.1GHz (4M Cache)
Chipset: Intel B560
Graphics: Integrated – Intel HD Graphics
Memory: DRAM MODULE(DDR4)/3200/4G
Storage: 128GB M.2 NVMe™ PCIe® 3.0 SSD
Wireless Data Network: Wi-Fi 6, Bluetooth 5.0, 2*2
LAN: 10/100/1000 Mbps, Intel LAN
Side (Front) I/O Ports: 4 x USB 3.2 Gen2 Type-A (1 w/QC), 1 x USB 3.2 Gen1 Type-C, 2 x Audio Jacks (optional)
Back I/O Ports: 1x USB3.2 Gen1 Type-A, 2x USB2.0, 1x RJ45 LAN, 2x Display Port 1.2, 1x configurable ports (HDMI 2.0/VGA/COM/DP/LAN), 1x Kensington lock, 1x DC-in
Power Supply: 150W – 19Vdc, 4.74A, 90W Power Adapter
Dimensions (W x D x H): 175 x 175 x 44.2 mm
Weight: 1.3KG (HDD included)
Color: Black
Accessories: USB Keyboard & Mouse
Certificates: BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI

Microphone
Shure 18 CVG18S-B Microphone
Cartridge Type: Electret Condenser
Frequency Response: 70–16000 Hz
Polar Pattern: Cardioid
Output Impedance: 180 Ω
Sensitivity (at 1 kHz, open circuit voltage): –33 dBV/Pa (22 mV)
Maximum SPL (1 kHz at 1% THD): 120 dB SPL
Signal to Noise Ratio (referenced at 94 dB SPL): 67 dB
Dynamic Range: 93 dB
Self Noise (equivalent SPL, A-weighted, typical): 27 dB SPL
Common Mode Rejection (10 Hz to 100 kHz): 45 dB
Preamplifier Output Clipping Level (1% THD): −7 dBV
Polarity: 3
Power Requirements: 11–52 V DC, 2.0 mA

Wireless Charger
The Wireless Charger enhances your presentation with its practical structure and stylish design on the podium speaker panel. It features a 15W Fast Charge capability, Type-C and USB 3.0 ports, and a waterproof silicone cover.

Mechanical Specifications
Lecturer Panel: 22″
Screen Resolution: 1920×1080
Brightness: 250 cd/m²
Aspect Ratio: 16:09
Number of Touch Points: 10 Points Capacitive
Lecturer Panel PC CPU: Intel 4.10 GHz
RAM: 4 GB
HDD: 120 GB SSD
Operating System: Windows 11 Pro
Microphone Length: 18”
Number of Microphones: 1 pcs
Output Connector: 3-way XLR (Male)
Microphone Type: Cardioid
Frequency Response: 50 – 18 kHz
Power ON Indicator: LED
Power Requirement: Phantom Power (48V)

Outputs (Bottom of Podium)
HDMI: Available (Projector Out)
Ethernet: Network Connection
XLR for Microphone: 3-way XLR (Male)
USB: USB 2.0 (for internal PC)

Inputs
HDMI: Available (On desk for Laptop)
Type-C: Available (On desk for Laptop)
Wireless Mobile Phone Charger: Available with USB and Type-C port
Ethernet: Available (On desk for Laptop)
230V Plug (Mx 6A): Available (On desk for Laptop)
USB: USB 2.0 and USB 3.0

Mechanical Specs
Outline Dimension (mm) Set: 754 x 810 x 1049
Outline Dimension (mm) Package: 850 x 950 x 1300
Weight (kg): Set: 101 kg; Package: 153 kg
