Vaddio ConferenceSHOT AV Conferencing Bundle with 2 CeilingMIC and HD PTZ Camera, White View For Sale

Vaddio ConferenceSHOT AV Conferencing Bundle with 2 CeilingMIC and HD PTZ Camera, White

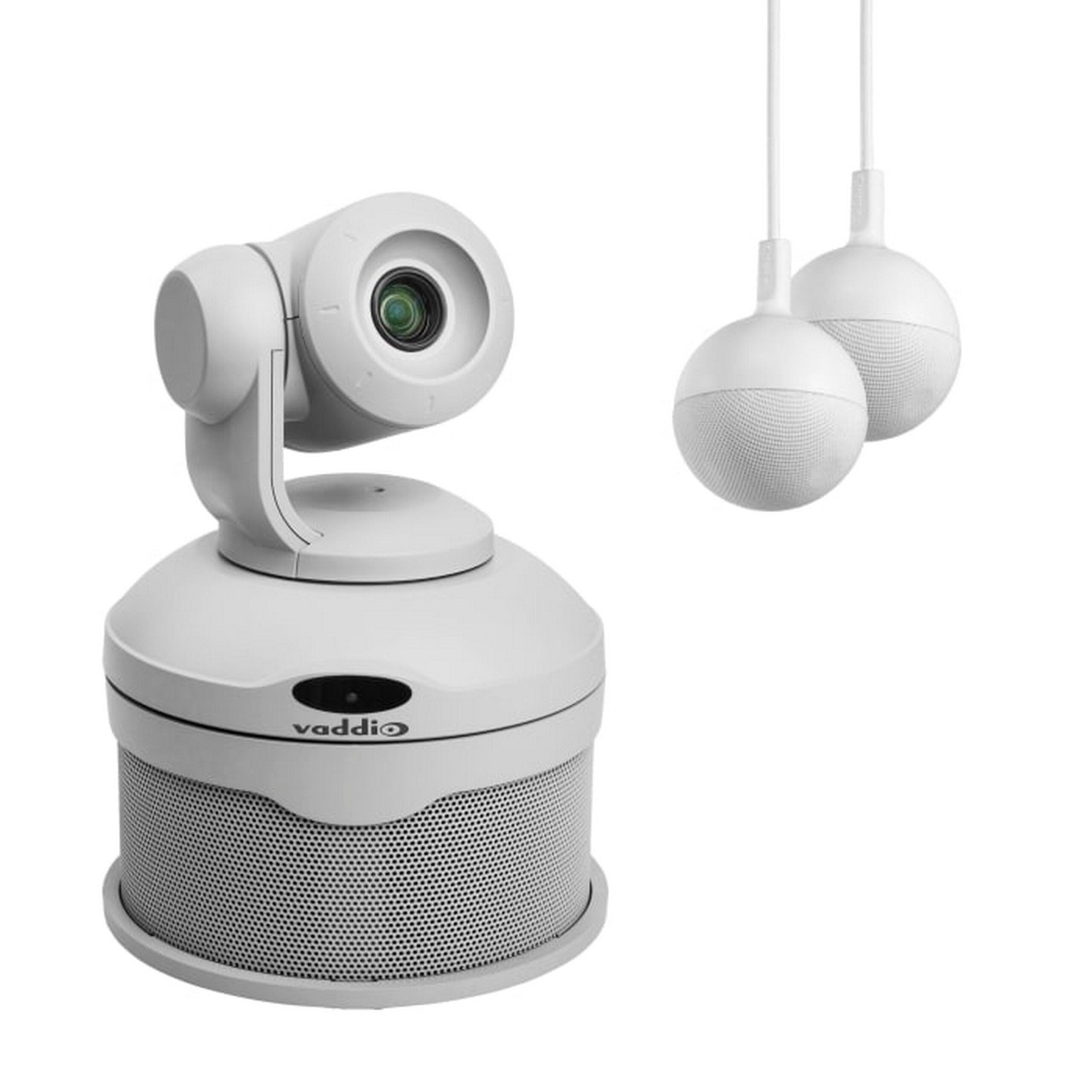

Ideal for small to medium-sized videoconferencing rooms, the ConferenceSHOT AV CeilingMIC 2 Bundle includes one ConferenceSHOT AV camera, one ConferenceSHOT AV Speaker and two white CeilingMIC microphones.

Powerful
ConferenceSHOT AV integrates a 10X zoom PTZ camera and audio conferencing mixer into a single USB 3.0 device, so you can easily connect microphones and external speaker to the camera. The CeilingMIC 2 Bundle is easy to install and allows simple plug and play functionality with all major UCC soft clients such as Skype for Business, WebEx and Google.

Simple
ConferenceSHOT AV is UVC compliant. No external drivers need to be installed on your PC – just plug and play. The versatile system supports customized AV designs with third-party equipment or can be deployed as a standalone solution.

Enterprise-Class
ConferenceSHOT AV allows for remote monitoring, management and control of a distributed camera network. IP-accessible and a browser-based user interface enables both browser control and IP-live preview and setup from PCs, Macs and mobile devices including iPhone, iPad and Android devices.
This USB-based solution makes it easy for your organization to collaborate using Skype for Business, WebEx, Zoom, BlueJeans, Google Hangouts, Vidyo and other leading UC services.
ConferenceSHOT AV turns your BYOD device into a small space UC system with professional PTZ camera quality and full room audio performance. It’s a significant step up in performance from the current webcam-based technology offerings.

This Package Includes:
ConferenceSHOT AV camera (silver/black or white)
ConferenceSHOT AV speaker (black or white)
2 qty CeilingMIC microphones (white)
2 qty silicone split strain relief boots (white)
ConferenceSHOT AV Quick-Start Guide
CeilingMIC Installation Guide
PoE+ Midspan Power Injector with AC cord set(s)
Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
Vaddio IR Remote Commander with audio controls
Speaker mounting rail with gasket and mounting screws
2 qty CeilingMIC interface boxes
2 qty cable clamp grommets
4 qty ceiling trim ring plates (white) with mounting screws
2 qty ceiling tile braces
6.5″” (16.5cm) Power/Audio cable with phoenix-style connectors
6′ (1.8m) USB 3.0 cable, type A to B
2 qty 3′ (0.9m) cat-5 cables, white
1 qty 10′ (3m) cat-5 cable, black
1 qty 4-position phoenix-style connector

Technical Specifications

Certifications
CE Approved, FCC Approved
Product Width
Camera: 6.1” (155 mm) Speaker: 7.25″ (184 mm)
Product Height
Camera: 6.3” (163 mm) Speaker: 3.63″ (92 mm)
Product Depth
Camera: 5.5” (145 mm) Speaker: 6.75″ (171 mm)
Product Weight
Camera: 3.0 lbs(1.36 kg) Speaker: 1.6 lbs (0.72 kg)
Signal Type
USB 3.0, USB 2.0, Audio, IP-Streaming
Power Type
PoE+
Input Ports
EZMic, USB 3.0
Output Ports
USB 3 Type B, IP-Streaming, Audio
Zoom
10x
Field of View
74 Wide End to 7.6 Tele End
Estimated Room Size
Small Conference Room, Large Conference Room
Minimum Illumination
0.4 Lux (F1.6)
Browser-based User Interface for Remote Control
Built-in
Control Method
Joystick, Web UI, Touch Screen, Telnet, RS-232 and IR Remote
OneLINK Compatibility
No
PTZ Motors
Stepper Motors
Tri-Sync Motion
No
Pan and Tilt Range
Pan: +/-165, Tilt: +90 to -30
Pan and Tilt Speed
0.35/sec to 90/sec
Image Sensor Type
1/2.8 Exmor CMOS
Pixels
2.14 Megapixel (2.38 Total MP)
Top Resolution
1080p/60
Invertible
Yes
Focus System
Auto, Manual
Gain
Auto, Manual
Operating Temperature
32 to 104F (0 to 40C)
Preset Positions
16 + Custom Home Position
White Balance
Auto, Manual, One-Push
Warranty
2 years
Power Supply
PoE+
Quick-Connect Compatibility
No
