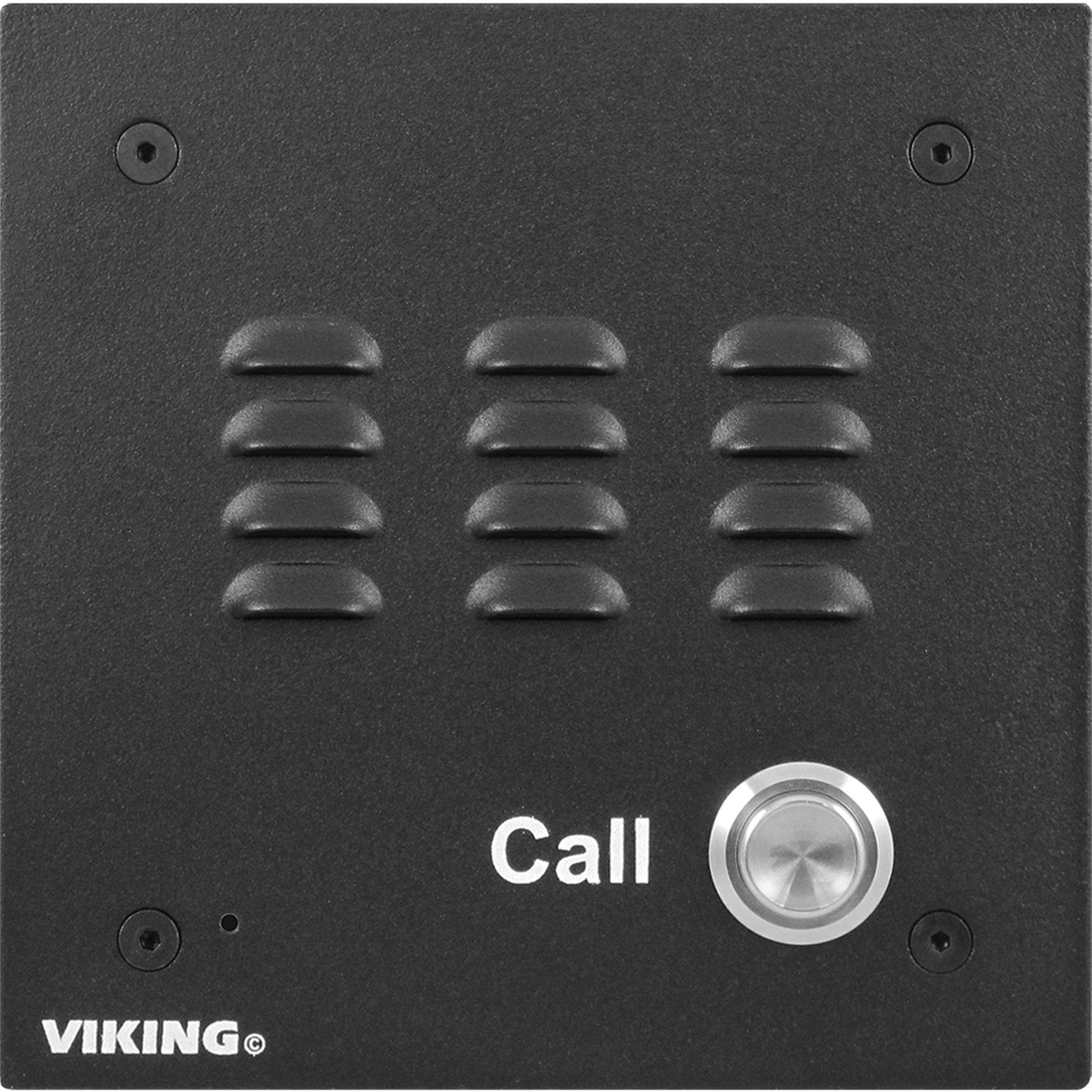

Viking E-10-IP-EWP VoIP Handsfree Entry Phone with Enhanced Weather Protection, Black

The E-10-IP-EWP VoIP Entry Phone by Viking Electronics is designed for seamless hands-free communication in SIP VoIP phone systems. This high-performance entry phone can be powered via Power over Ethernet (PoE) and connects easily to your VoIP system, offering a reliable and convenient solution for outdoor environments. With the ability to dial up to 5 programmable numbers, this entry phone ensures that important calls get through, even in busy or no-answer scenarios, by cycling through backup numbers automatically.

Equipped with Enhanced Weather Protection (EWP), the E-10-IP-EWP is built to withstand harsh outdoor conditions such as precipitation and condensation, making it ideal for locations exposed to the elements. The device meets IP66 ingress protection standards, featuring weather-resistant components such as sealed connections, foam rubber gaskets, and potted circuit boards. This robust design ensures the entry phone will perform reliably in all weather conditions, providing long-lasting functionality.

The E-10-IP-EWP also features Automatic Noise Canceling (ANC) to ensure clear communication, even in noisy environments. With hands-free operation, VoIP audio detection, and an intuitive programming system, this entry phone is ideal for remote control of gates, doors, and strobe lights. The unit also includes advanced security features like T-10 Torx security screws and laser-etched graphics for added durability and tamper resistance. Plus, it is fully programmable via any touch-tone phone, a PC on the same LAN, or remotely using a static IP address, making it highly flexible for a variety of installation environments.

Key Features

• PoE powered (class 1, <4 Watts) for easy installation with no external power supply needed
• Programmable to dial up to 5 numbers, with automatic cycling through backup numbers on busy or no answer
• Hangs up automatically on busy signal, time-out, or touch tone command
• Hands-free operation with VoIP audio detection, eliminating the need for “Push to Talk” mode
• Automatic Noise Canceling (ANC) feature for optimal operation in noisy environments
• Enhanced Weather Protection (EWP), designed to meet IP66 standards for reliable outdoor use
• 2 Amp relay contacts for door/gate or SL-2 Strobe Light control
• Security features: T-10 Torx security screws, laser etched graphics
• Programming software included, with network downloadable firmware and remote programming capability
• Diagnostics for mic, speaker, and relay testing
• Extended temperature range: -40°F to 140°F (-40°C to 60°C)
• Flush mount or surface mount options available with included rough-in box or VE-5×5 Surface Mount Box

Technical Specifications

Power: PoE class 1 (<4 Watts)
Maximum Sound Pressure: 90dB SPL @ 1m
Overall Dimensions: 5″ x 5″ x 2.25″ (127mm x 127mm x 57.2mm)
Rough-In Box Dimensions: 4″ x 4″ x 2.15″ (102mm x 102mm x 55mm)
Shipping Weight: 2.12 lbs (1.0 kg)
Operating Temperature: -40°F to 140°F (-40°C to 60°C)
Humidity: Up to 100%
Material: Heavy-duty black powder painted aluminum
SPDT Relay Contact Rating: 2A @ 30VDC / 1A @ 125VAC, 250VAC maximum
Audio Codecs: G711u, G711a, G722
Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over
Connections: (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors
