Williams AV FM ADA KIT 37 Accommodate Individuals for Hearing Accessibility Small Group Quality Free Shipping

Williams Sound FM ADA KIT 37 Accommodate Innaviduals for Hearing Accessibility Small Group

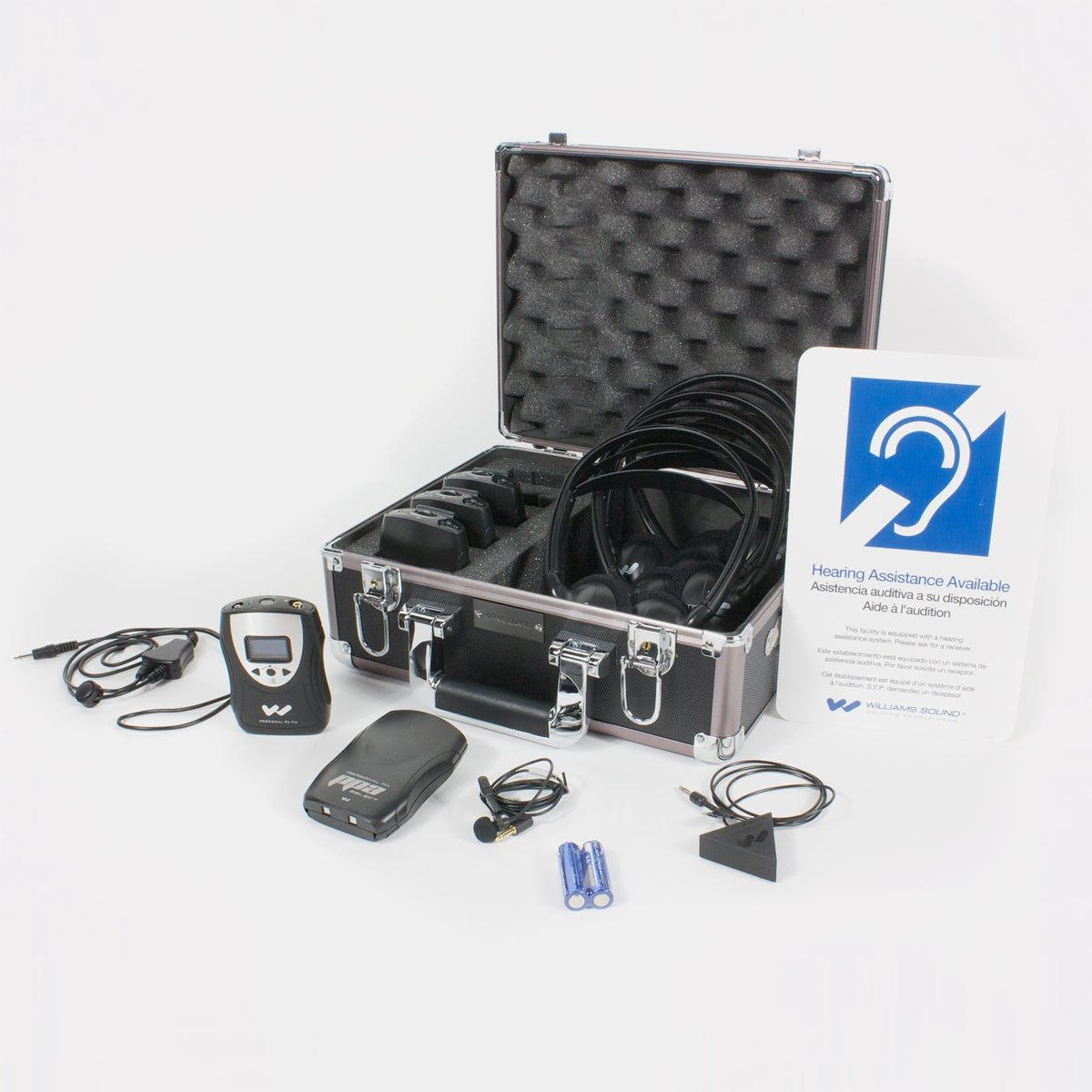

This kit provides everything you need to accommodate innaviduals for hearing accessibility in a small-group settings such as libraries, conference rooms and information desks. This portable, easy-to-use FM system operates at 72-76 MHz on one of 17 selectable channels. This single kit satisfies ADA requirements for multiple-room facilities.

NOTE: The FM ADA Compliance Kit is approved by the FCC for operation in U.S. markets. The system cannot be used in all countries. Check with your government´s radio regulations for 72-76 MHz operation.

Key Features

• Simple set-up and operation
• T46 transmitter
• 150 operating range
• 100 hours receiver battery life
• Lifetime PLUS Limited Warranty (90 days on accessories)
• Meets new 2010 ADA accessibility guidelines

Technical Specs

(1) PPA T46 transmitter
(4) PPA R37 receivers
(4) HED 027 headphones
(1) MIC 090 lapel microphone
(1) MIC 049 desktop conference mic
(1) CCS 029 system carry case
(2) NKL 001 neckloops
(5) BAT 001-2 AA alkaline batteries
(1) IDP 008 ADA wall plaque

Dimensions:
4.1 x 2.85 x 1.38 (104 x 72 x 35mm)
Weight:
4.6oz (130g) with batteries. 2.6oz (73g) without batteries
Color:
Black
Battery Type:
(2) AA Alkaline or 2 x AA NiMH
Battery Life:
Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs
(2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs
Current Consumption:
52mA nominal
Temperature Range:
– 0 to 50C
Channels
17, accessed via seek button in battery compartment
Operating Freq.:
72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*
Intermediate Freq.:
75 kHz
FM Deviation:
75 kHz
De-Emphasis:
75 µS
LED Indicator:
Power: Green; Low Battery: Flashes Green
AFC Range:
± 120 kHz
Sensitivity:
2 µV at 12 dB Sinad with squelch defeated
Input Overload:
100 mV
Frequency Response:
200 – 15 kHz
Modulation:
FM, +/- 75 kHz peak deviation
Signal-to-Noise Ratio:
65 dB min @ 100 uV
Receive Antenna:
Integral with earphone/headphone cord
Audio Output:
35 mW max, peak into 16 ohms
Output Connector:
3.5 mm stereo/mono phone jack
Earphone:
Earbud-type with foam cushion, 3.5 mm plug, 32
Auto Shut-off
Enters sleep mode after approx 6 mins of no RF signal
Approvals:
FCC, Industry Canada, RoHS, WEEE
Warranty:
Lifetime PLUS Limited Warranty, 90 Days on most accessories.

Dimensions:
4.1 L x 2.8 W x 1.1 D (104 mm x 71 mm x 28 mm)
Weight:
2.6 oz (74 g), no batteries
Color:
Black/Silver
Enclosure Material:
Shatter-resistant PC/ABS plastic with textured scratch-resistant aluminum faceplate
Battery Type options:
Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001-2), 75 mA nominal current drain, up to 30 hours battery life, or
Two (2) AA 1.5 V NiMH rechargeable batteries (BAT 026-2), 75 mA nominal current drain, up to 20 hours battery life per charge, recharges in 14-16 hours, uses CHG 3502 or CHG 3512 Charger
Operating Frequencies:
Selectable, 17 channels, 72.1 – 75.9 MHz*. Switchable 8 or 17 Channel Mode. (8-channel mode setting corresponds with PPA R35-8 receiver channels)
Stability:
± .005%, frequency synthesized, crystal reference, PLL
Modulation:
Wide-band FM, 75 kHz peak, 75 µS pre-emphasis
RF Output:
80 mV/m at 3 m (max. allowed by FCC rules)
Frequency Response:
180 Hz to 13 kHz, ± 3 dB at 1% max. THD
Signal-to-Noise Ratio:
65 dB (typical) transmitted
Transmit Antenna:
Integral with microphone cord
Microphone:
Electret type, 3.5 mm mono plug
External Display:
OLED for status and menu information.
Status: Ch/Freq, Mic Audio Level, Auxiliary Input Audio Level, Battery Status, Mic Mute, Channel Lock, Dual-Preset mode.
Menu: Ch/Freq display mode select, Volume, Aux Input, Compression,
17 or 8-channel mode, screen time out, screen brightness, restore default settings
External Controls:
Momentary push button: push and hold 3 seconds for power On/Off, push and release for microphone mute On/Off.
Left, Right and Menu buttons for accessing and changing transmitter settings. Battery type switch (Alkaline or NiMH) located behind the battery compartment door.
External Indicators:
Power LED – Green, flashes when battery is low
Mic Input:
3.5 mm mono jack with electret mic bias, adjustable gain with
25 dB range
Aux Input:
2.5 mm stereo jack, adjustable gain with 60 dB range
Audio Compression:
1:1 (off) or 2:1 (on) selectable in menu

Dimensions
11″ x 8″ x 14″
Weight
3.5 lbs
