Yealink W70B High-Performance DECT IP Base Station Sale Original

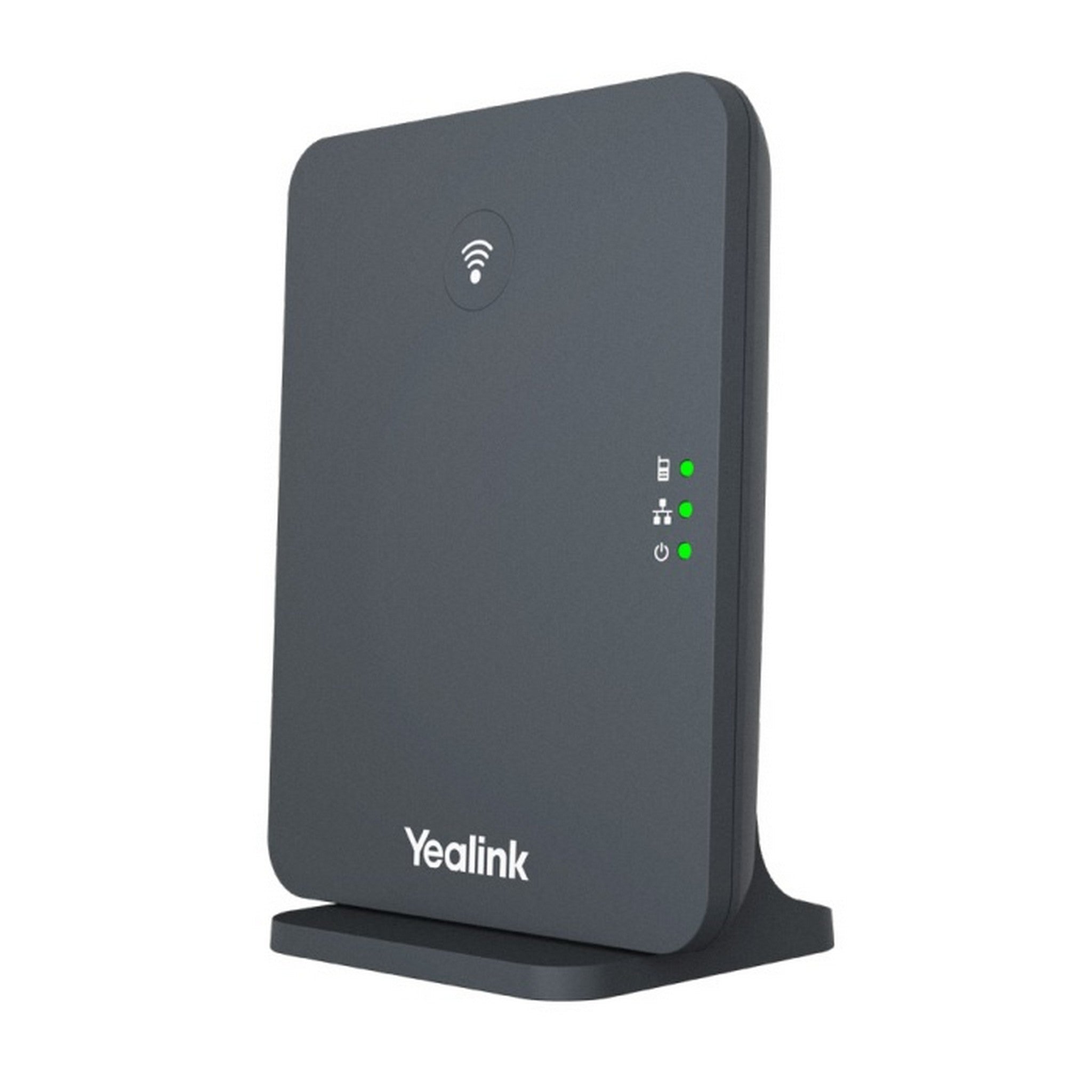

Yealink W70B High-Performance DECT IP Base Station

The Yealink W70B is the DECT IP base station for small and medium-sized businesses. Paring with up to a total of 10 Yealink W73H/W56H/W59R/CP930W/color screen DDPhone (T54W+DD10K) DECT handsets, W70B allows you to enjoy superb mobility and efficient flexibility immediately as well as significantly eliminates additional wiring troubles and charges. A powerful chip ensuring a better and higher performance, this DECT IP base station not only supports up to 10 VoIP accounts and 20 simultaneous calls, but also speeds up its startup and signal connection, provides no perception upgrade, slashes its upgrade downtime as well.

Designed in modern and elegant style, this compact DECT IP base station possesses a wire-hidden design, presenting a concise and tidy desk to you even being mounted to the wall. By supporting Opus codec, Yealink W70B consistently delivers excellent and professional audio quality in both high-bandwidth and poor network conditions, comparing with other wideband or narrowband audio codecs.

The Yealink W70B DECT IP base station supports efficient provisioning and effortless mass deployment with Yealink’s Redirection and Provisioning Service (RPS) and Boot mechanism to help you realize the Zero Touch Provisioning without any complex manual settings, which makes it simple to deploy, easy to maintain and upgrade, saving even more time and IT costs for businesses.

Key Features

• Up to 20 simultaneous calls
• Up to 10 DECT cordless handsets
• Up to 10 SIP accounts
• Support Opus audio codec
• Noise Reduction System
• TLS and SRTP security encryption
• No Perception Upgrade

Technical Specifications

Phone Features
Up to 20 simultaneous calls
Up to 10 handsets
Up to 10 SIP accounts
Up to 6 repeaters per base station (RT30)
No Perception Upgrade
Paging/Intercom/Auto answer/Dial plan
Call hold/Call transfer/Call waiting
3-way conference
Switching between calls
Mute/Silence/DND
Caller ID with name and number
Anonymous call/Anonymous call rejection
Call forward
Always/Busy/No Answer
Speed dial/Voicemail/Redial
Message Waiting Indication (MWI)
Music on hold (server-based)
Local phonebook for up to 1000 entries (store in the base)
Remote phonebook/LDAP/XML phonebook
Phonebook search/import/export
Call history
All/Missed/Placed/Received
Direct IP call without SIP proxy
Reset to factory, reboot
Emergency call
Broadsoft directory, BroadSoft call log
Broadworks feature key synchronization
Shared Call Appearance (SCA)
Action URI
XML browser
Management
Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
Auto-provision with PnP
Handset upgrade
OTA (Over-The-Air)/No Perception
Configuration
browser/phone/auto-provision
Trace package and system log export
Audio Features
Full-duplex speakerphone
Hearing Aid Compatibility (HAC) compliant
FNR (Flexible Noise Reduction)/Noise Cancellation
Wideband codec
Opus, AMR-WB (optional), G.722
Narrowband codec
PCMU, PCMA, G.726, G.729, G.729A, iLBC VAD, CNG, AGC, PLC, AJB
AEC (supported by W53H)
Support VQ-RTCPXR (RFC6035), RTCP-XR
Network Features
SIP v1 (RFC2543), v2 (RFC3261)
SNTP/NTP
VLAN (802.1Q and 802.1P)
802.1x, LLDP
STUN Client (NAT Traversal)
UDP/TCP/TLS
IP assignment
Static/DHCP
Support outbound proxy server backup
Security
Open VPN
Transport Layer Security (TLS)
HTTPS (server/client), SRTP (RFC3711)
Digest authentication
Secure configuration file via AES encryption
Support SHA256/SHA512/SHA384
Three-level configuration mode
Admin/Var/User
DECT
Frequency bands
1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US), 1902 – 1906 MHz (THA)
DECT Standards
CAT-iq2.0
Interface
1 x RJ45 10/100M Ethernet port
Power over Ethernet (IEEE 802.3af), Class 1
Physical Features
Indoor Range
50 m (in ideal conditions)
Outdoor Range
300 m (in ideal conditions)
Desktop or wall mountable
Energy-saving ECO mode/ECO Mode+
Three LED indicators on W70B
1 x Registration LED
1 x Network Status LED
1 x Power Indicator LED
External Yealink AC adapter
AC 100-240V Input and DC 5V/600mA Output
Color
Classic Grey
Base station size
130 mm x 100 mm x 25.1 mm
Operating humidity
10-95%
Operating temperature
-10 Degrees C to +50 Degrees C (+14 Degrees F to 122 Degrees F)
Package Features
Package contents
W70B Base Station
Base Stand
Power Adapter
Ethernet Cable
Quick Start Guide
Qty/CNT: 10 PCS
Giftbox size: 375 mm x 336 mm x 187 mm
Carton meas: 174 mm x 180 mm x 63 mm
N.W: 3.612 Kg
G.W: 4.146 Kg
