Yealink W76P High-Performance DECT IP Phone System Extremely For Sale

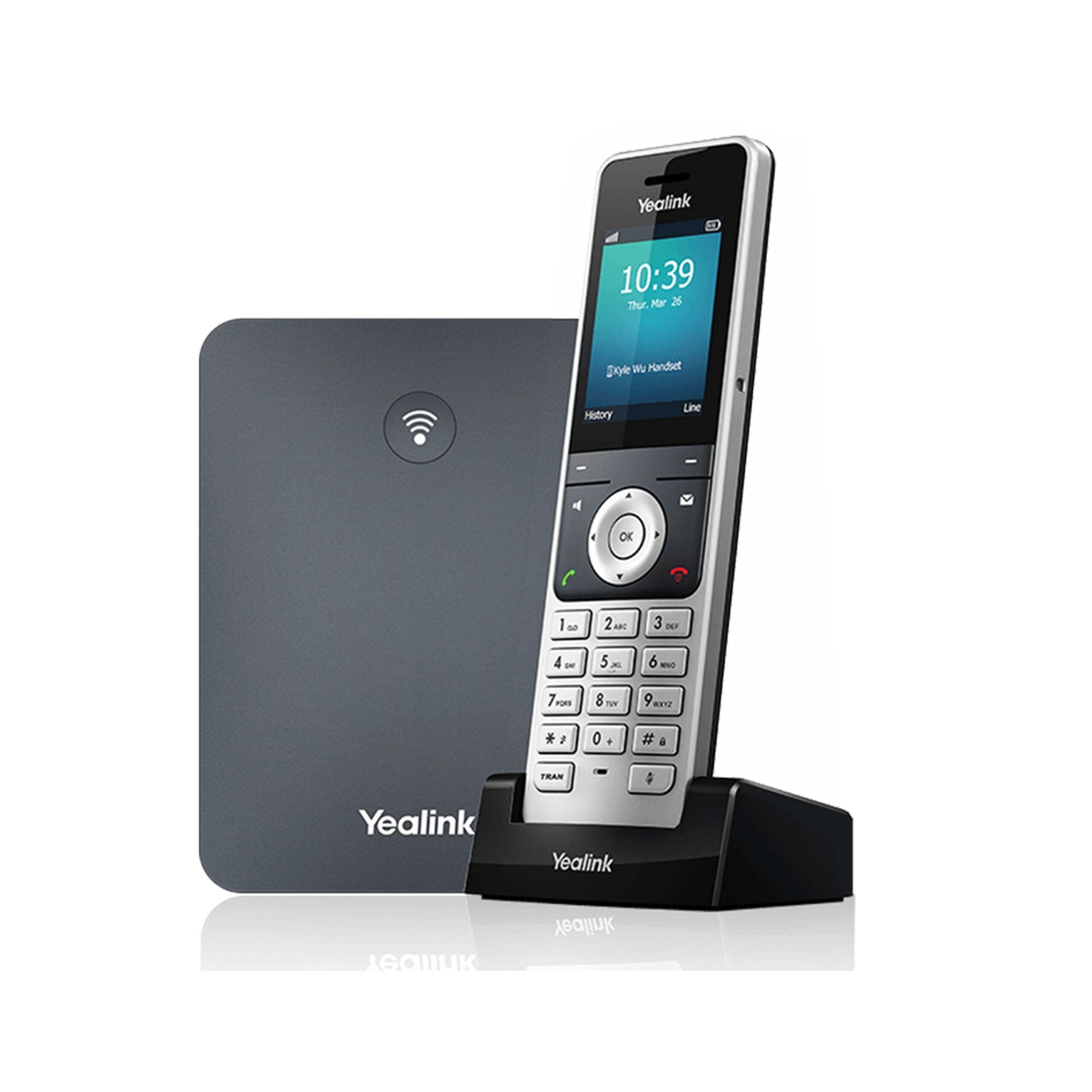

Yealink W76P High-Performance DECT IP Phone System

The Yealink W76P, being a high-performance SIP cordless phone system, is the ideal solution for small and medium-sized businesses. Paring with up to a total of 10 Yealink W56H DECT handsets, it allows you enjoy superb mobility and efficient flexibility immediately as well as significantly eliminates additional wiring troubles and charges. To provide a better and higher performance, this DECT IP phone not only supports up to 10 VoIP accounts and 20 simultaneous calls, but also speeds up its startup and signal connection, slashes its upgrade downtime as well.

By supporting Opus codec, W76P consistently delivers excellent and professional audio quality in both high-bandwidth and poor network conditions, comparing with other wideband or narrowband audio codecs. Offering the convenience of cordless with a simple add-on device without losing the SIP features, it brings a seamless call management for our users while “on-the-go”. Owning more functions, lines and mobility, it empowers users with the convenience of wireless communication along with the widely accepted benefits and feature richness of Voice-over-IP telephony.

The Yealink DECT IP phone W76P supports efficient provisioning and effortless mass deployment with Yealink’s Redirection and Provisioning Service (RPS) and Boot mechanism to help you realize the Zero Touch Provisioning without any complex manual settings, which makes It’simple to deploy, easy to maintain and upgrade, saving even more time and IT costs for businesses.

Key Features

• High-performance SIP cordless phone system
• 2.4″ 240 x 320 color screen with intuitive user interface
• Up to 20 simultaneous calls
• Up to 10 DECT cordless handsets
• Up to 10 VoIP accounts
• Support Opus audio codec
• Up to 30-hour talk time (in ideal conditions)
• Up to 400-hour standby time (in ideal conditions)
• Quick charging: 10-min charge time for 2-hour talk time
• TLS and SRTP security encryption
• Noise Reduction System
• Headset connection via 3.5 mm jack
• Charger wall mountable

Technical Specifications

Phone Features
Up to 20 simultaneous calls
Up to 10 handsets
Up to 10 VoIP accounts
Up to 2 simultaneous calls per handset
Up to 6 repeaters per base station (RT30)
Handset selection for receiving call
Handset and number selection for placing call
Paging, intercom, auto answer, dial plan
Call hold, call transfer, 3-way conference
Switching between calls
Call waiting, mute, silence, DND
Caller ID with name and number
Anonymous call/Anonymous call rejection
Call forward: Always/Busy/No Answer
Speed dial/Voicemail/Redial
Message Waiting Indication (MWI)
Music on hold (server-based)
Local phonebook for up to 1000 entries (store in the base)
Remote phonebook/LDAP/XML phonebook
Phonebook search/import/export
100 call history per handset: All/Placed/Missed/
Received/Forward
Direct IP call without SIP proxy
Reset to factory, reboot
Keypad lock, emergency call
Broadsoft directory, BroadSoft call log
Broadworks feature key synchronization
Shared Call Appearance (SCA)
XML browser
Action URI
Personalization
9 ringer melodies
Screen saver
Multilingual user interface
Management
Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
Auto-provision with PnP
Handset upgrade
OTA (Over-The-Air)
Configuration
Browser/phone/auto-provision
Trace package and system log export
Audio Features
Full-duplex speakerphone
Hearing Aid Compatibility (HAC) compliant
Receiver volume control
5 steps
Ringer volume control
5 steps + off
Multiple advisory tones
Acoustic warning for low battery status
DTMF
Wideband codec
Opus, AMR-WB (optional), G.722
Narrowband codec
AMR-NB (optional), PCMU, PCMA, G.726, G.729, G.729A, iLBC
VAD, CNG, AGC, PLC, AJB
AEC (supported by W56H)
Support VQ-RTCPXR (RFC6035), RTCP-XR
Network Features
SIP v1 (RFC2543), v2 (RFC3261)
SNTP/NTP
VLAN (802.1Q and 802.1P)
802.1x, LLDP
STUN Client (NAT Traversal)
UDP/TCP/TLS
IP assignment
Static/DHCP
Support outbound proxy server backup
Security
Open VPN
Transport Layer Security (TLS)
HTTPS (server/client), SRTP (RFC3711)
Digest authentication
Secure configuration file via AES encryption
Support SHA256/SHA512/SHA384
Three-level configuration mode: Admin/Var/User
DECT
Frequency bands
1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US)
DECT Standards: CAT-iq2.0
Interface
1 x RJ45 10/100M Ethernet port
Power over Ethernet (IEEE 802.3af), Class 1
Headset jack (3.5 mm)
Physical Features
Indoor Range
50m (in ideal conditions)
Outdoor Range
300m (in ideal conditions)
Standby Time
400 hours (in ideal conditions)
Talk Time
30 hours
2.4” 240×320 pixels color display
Desktop or wall mountable
LCD backlit, key backlit
Energy-saving ECO mode/ECO Mode+
12 key numerical keypad, 5 navigation keys, 2 softkeys, 6 function keys, 6 shortcut keys
Three LED indicators on W70B
1 x Registration LED
1 x Network Status LED
1 x Power Indicator LED
External Yealink AC adapter
AC 100-240V Input and DC 5V/600mA Output
Color
Handset
Alabaster Silver; Base: Classic
Grey
Handset size
175mm x 53mm x 20.3mm
Base station size
130mm x 100mm x 25.1mm
Operating humidity
10 ~ 95%
Operating temperature
0~+40 Degrees C (+32~104 Degrees F)
Package contents
W56H Handset
W70B Base Station
Base Stand
USB Charger Cradle
Two Power Adapters
Ethernet Cable
Belt Clip
Rechargeable Battery
Quick Start Guide
Qty/CNT: 10 PCS
Giftbox size
205mm × 196mm × 95mm
Carton meas
495mm × 406mm × 223mm
N.W: 7.5 kg
G.W: 8.3 kg
